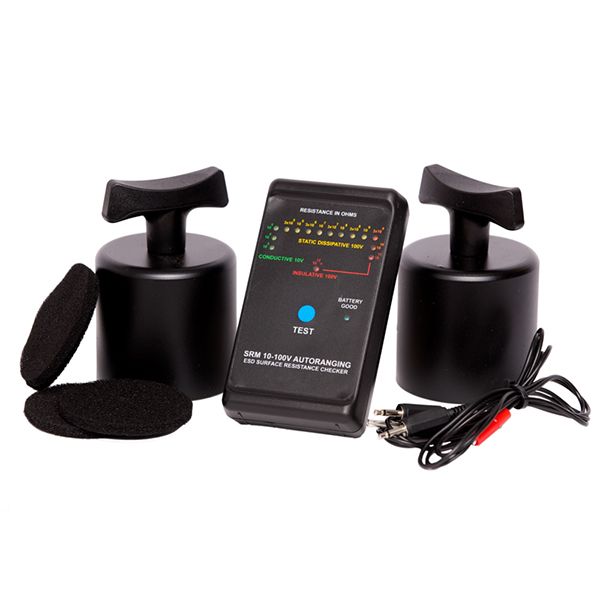

Surface Resistivity Kit

Surface Resistivity Kit



This instrument is ideal for testing the electrostatic protected area (EPA) to the latest industry standards. It will test point-to-point, surface resistivity and resistance to ground. This unique surface resisitivity meter has extremely accurate and idicates resistance to 'half a decade' through the important static dissipative range using 10/100 volt test voltages to ensure more accurate readings.



Directions Of Use

  1. To measure point-to-point, place the 2.5kg weights on the area to be tested and press the test button.
  2. To test surface resistivity place the square probe on the area to be tested and press the test button.
  3. To test resistance to ground place one weight on the mat and connect the other lead to ground and press the test button.
  4. The meter indicates conductive by green LEDs from 10^3-10^5, static dissipative by yellow LEDs from 10^6-10^11 and insulative by red LEDs 10^12+.
  5. The battery power is indicated by a battery power LED.
More Information
General Specifications


Specifications:

  • Decade changeover : +/-1/2 decade on a logarithmic scale
  • Resolution : 1 decade
  • Accuracy : +/- ½ decade
  • Temperature : 4°C-55°C
  • Power : 9 volt PP3 alkaline battery
  • Test voltage : 10^3-10^5 10v 10^6-10^12 100v
  • Weight : 250 grams (instrument only)
  • Dimensions : 210x115x32 mm

User Guide

1. Check that a good quality Alkaline PP3 battery is fitted; the battery compartment is

located at the rear of the enclosure. If at any time the battery voltage drops below

6.5 volts the Blue battery low indicator will light.

2. Insert the 2 x 3.5mm Jack plug test leads into the 2 x 3.5mm Jack sockets located on

the top panel of the meter.

3. Connect the two 2.5 kilo (51b) weights, to the other end of the test leads via the

4mm banana plugs (Red & Black). Place the weights gently onto the surface that

requires testing, and press the test button. The Resistance of the surface under test

will be displayed in Ohms. GREEN LED’s will indicate a Conductive reading and the

measurement is taken at a test voltage of 10 volts. The YELLOW / ORANGE LED’s

indicates dissipative. These measurements are taken automatically at a test voltage

of 100 volts.

 The RED segment indicates Insulative

4. The Black conductive carry case comes with carrying handle and is lined with

conductive foam.
