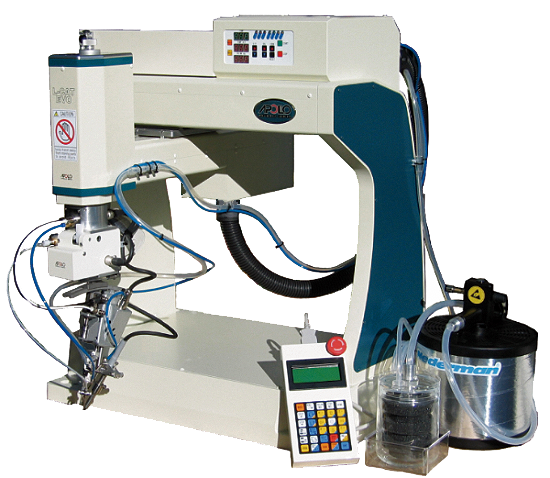

The latest iteration of the EVO line, the L-CAT EVO II is an iron-tip robot designed for both desktop and in-line applications, with smoother and more reliable axes, expanded I/O, and Ethernet capability.

Where the EVO II truly shines is flexibility.  With a capacity for 100 programs, 100,000 points, and 300 soldering profiles with customizable soldering temperature for optimal quality and cycle time, this machine is capable of meeting virtually any PCB soldering requirement.

Throw in its X&Y motors with high-accuracy rotary encoders, achieving 0.01 mm resolution (repeatability 0.02mm) and a maximum speed of 750 mm/sec, and you can see what makes the EVO II a reliable choice.

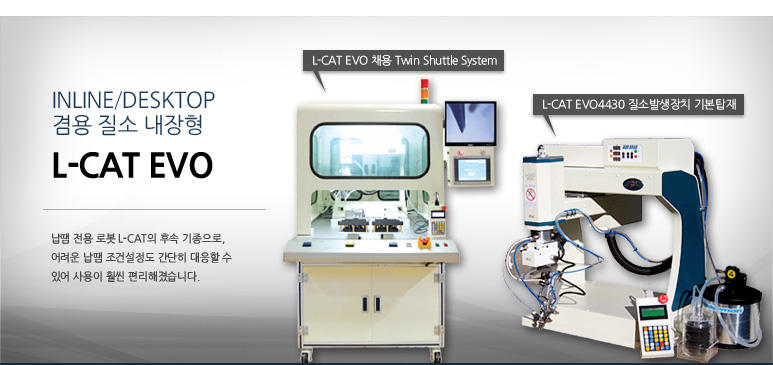

Versatile in-Line Selective Solder Robot

Gantry-type robotic soldering

Defining the soldering parameters is fast & simple due to the intuitive interface of the EVO robot.  The EVO has evolved from a long line of selective solder robots.

Oxygen removal filter as standard

The L-CAT EVO is standard equipped with filters to remove oxygen in the atmosphere.

Soldering specialize robot L-CAT is innovative

• X & Y motors with high accuracy rotary encoders achieve 0.01mm resolution (repeatability 0.02 mm) with a maximum speed 750 mm/sec.
• All of the cables are internally routed via the Z-axis head and will not tangle during rotation.  The EVO has a program capacity of 100 programs and 100,000 points total to meet virtually all PCB soldering requirements.  The soldering temperature can be customized inside each of the 300 soldering profiles to provide optimal quality & cycle time for virtually all applications.
• The program capacity becomes 100 and 100,000 point to meet various soldering requirements
• The soldering temperature can be entered individually inside 198 soldering parameter.
