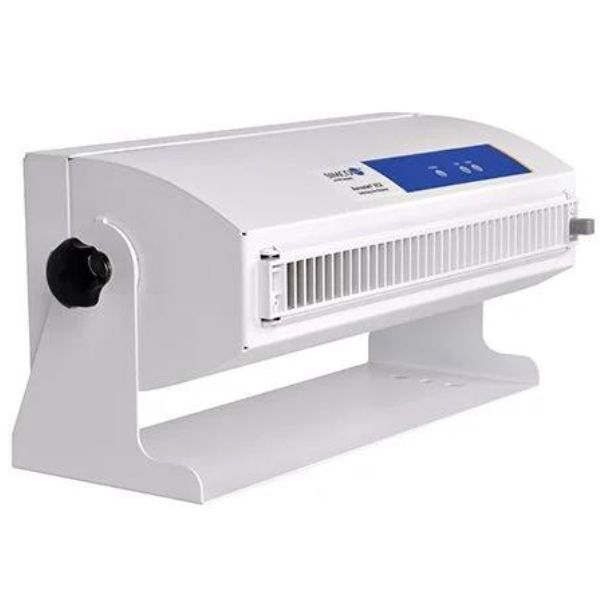

Simco Aerostat 91-XC2 Ionizing Blower

Simco Aerostat 91-XC2 Ionizing Blower

Zoom Out
Zoom In

Extended Coverage Benchtop Ionizing Blower with Fan-stalled Indicator

Simco-Ion’s Aerostat XC2 Blower provides complete wide area ionization protection and is designed and built for reliable, long-term static control. The XC2 offers outstanding coverage for larger areas with <12 second discharge times at 6 feet (1.8m) distance from the face of the blower. The weight-saving design allows the Aerostat XC2 to be mounted above the work surface, which is especially effective for flat-panel display module assembly.

Features Benefits
• Large, near symmetric Ionization area coverage • Designed for complete static neutralization across the entire work surface area
• Weight-saving design • Light enough to be easily mounted on or above the work surface
• Easy to use, built-in emitter cleaner • Ensures consistent, balanced performance over a long time
• ±10V self-balancing (“Micropulse”) technology • Long-term balance stability
• Local alarm LEDs, Facility Monitoring System  (FMS) connection and optional audible alarm • Ionization status can easily be monitored locally and at a remote location

TARGET MARKETS

  • Electronics Assembly
  • Life Sciences
  • Back-End Semiconductor Processing
  • Flat-panel Display

TARGET APPLICATIONS

The extended coverage of the Aerostat XC2 combined with its' lightweight design is perfect for neutralizing static charge from overhead and other large target areas.

Aerostat XC2 Ionizing Workstation

The Aerostat XC2 reaches an extended coverage area across the worksurface without sacrificing excessive work space.

Aerostat XC2 Ionizing Benchtop

For additional information on the Aerostat XC2 Blower or other ionization solutions for static control and particle contamination control, contact Sales.

View FileSimco Aerostat 91-XC2 Product Guide    Size: (394.38 KB)

General Specifications

Input Voltage 100-240 VAC, 50/60 Hz; 0.5A (no heater), 3.5A (100-120 VAC heater); 1.9A (220-240 VAC heater)
Discharge 1.0 sec @ 1’ (1000-100V high fan speed)
Balance 0 ±10V
Coverage Area 3’W x 6’L (effective coverage area is up to 6’ from the blower face)
Cleanroom Class Meets ISO 14644-1 Class 6 (Fed Std. 209E Class 1000)
Dimensions 14.13W x 7.2H x 6.55D in. (35.9W x 18.3H x 16.6D cm) with stand
Weight 7 lbs (3.2 kg) with stand





Input Voltage

100-240 VAC, 50/60 Hz

Input Current

0.5A, 55W max (no heater); 3.5A, 420W (with 100-120 VAC heater); 1.9A, 460W (with 220-240 VAC heater)

Discharge

1.0 sec @ 1’ 1’ (30 cm) (1000-100V high fan speed)1

Balance

0 ±10V

Coverage Area

3’W x 6’L (91 x 183 cm) (effective coverage area is up to 6’ from the blower face)

Ion Emission

Micropulse AC Ionization

Emitters

Stainless Steel emitter points

Controls

Power on/off, fan speed control low/medium/high, emitter point cleaner push button, balance adjust, heater on/off (optional)

Indicators

Green POWER on, red FAULT alarm, red FAN STALL alarm

Connectors

IEC AC Power Cord outlet, FMS fault alarm output connector

Air Volume

95 cfm (low), 150 cfm (high fan speed)

Air Velocity2

620 fpm @ 12”, 435 fpm @ 24”, 325 fpm @ 36”, 265 fpm @ 48” (high fan)

Heated Air Temp

4-5°F (2-3°C) above ambient, measured at 12” (30 cm) in front of blower (optional)

Audible Noise

58 dB (low fan speed), 70 dB (high fan speed) measured at 2’ in front of blower

Cleanroom Class

Meets ISO 14644 Class 6 (Fed Std. 209E Class 1000)

Ozone

<0.05 ppm measured at 1’ (30 cm) in front of blower

Operating Env3

Temperature 50-95°F (10-35°C), humidity 30-60% RH, non-condensing

Audible Alarm

Fault and fan stall (optional)

Mounting

Powder-coated steel stand with skid resistant rubber feet

Enclosure

Powder-coated aluminum chassis

Dimensions

14.13”W x 7.2”H x 6.55”D (35.9 x 18.3 x 16.6 cm) with stand

Weight

7 lbs (3.2 kg) with stand
