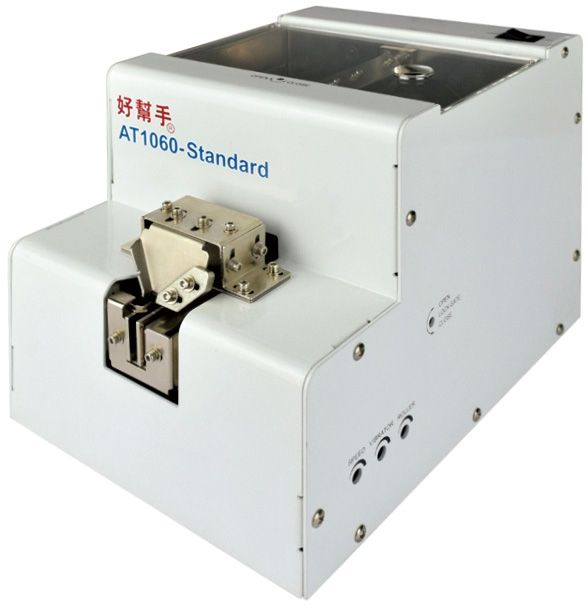

Adjustable Screw Feeder M1 - M6 Screws AT-1060

£500.00 (exc VAT) (£600.00 inc VAT)

Adjustable Screw Feeder M1 - M6 Screws AT-1060

Zoom Out
Zoom In

The AT-1060 Adjustable Screw Feeder is an excellent solution for those who need an automated screw feeding solution.

It is a perfect partner to our range of electric screw feeders.

This single unit can handle a range of screw sizes from M1 to M6 using the adjustable rail.

  • Adjustable Rail
  • Sweeping Brush
  • Easy Adjustment of Vibration and Speed
  • Pick-up rate up to two screws per second.

A version of this with a Screw Counter is also available.

View FileAdjustable Screw Feeder Specification Sheet    Size: (173.14 KB)
View FileAT-1060 Manual    Size: (610.81 KB)

General Specifications

Specification

Hopper Size: 100x145x100mm (1450cm3)

Model AT-1060
Output Speed 2pcs/Second
Protection/Recovery Function Overload Protection Circuit, Reverse Power Polarity Prevention Circuit
AC Adapter

Input: 100 - 240 VAC, 50/60Hz

Output: 12VDC

Dimension 235 (L) x 165 (W) x 180 (H) mm
Weight 4.8kg (10.6lbs)
Screws Diameter M1 - M6 (#000 - #12)
Maximum Screw Length 25mm
Minimum Screw Length

Single Screw:
Diameter x1.0

Screw with Spring Washer:
Diameter + (0.5x Diameter)

Screw with Spring and Flat Washers:
Diameter + (1.1x Diameter)

Screw Material Ferromagnetic

Contents included

  • AT-1060 Screw Feeder
  • AT-L40790-1 AC Adapter
  • Hex Wrench (M2)
  • Rail Adjustment Shims
  • Alternate Stopper
  • Instruction Manual
