Vision Engineering OPTA - Stereo Microscope


OPTA - Ergonomic Stereo Microscope

OPTA is a high quality stereo microscope which is aimed at enhancing the operator performance for a wide range of magnification tasks.

The OPTA provides precision in every detail for:

  • Spot intricate details and defects swiftly with supreme clarity.
  • Stay focused for extended periods due to enhanced ergonomics.
  • Effortlessly handle miniature subjects with both ease and precision.
Key Benefits Of The OPTA
Improve Efficiency & Ergonomics
Improve Hand Eye Coordination
Glasses Free 3D View Of Subjects
Long Working Distance - Perfect For Conducting Work Under Magnification

Key Features Of The OPTA

Experience unparalleled precision for electronic inspection and rework tasks with the OPTA. The eyepeice-less optical viewing offers a 3D perspective which improves hand-eye coordination and minimising operator fatigue.

Other Features Of The OPTA

Perfect View With Depth Perception - Increased depth and precision for inspections, enhancing user accuracy and efficiency.

Effortless Setup and User-Friendly Interface - Quick setup and intuitive controls that allow for seamless transitions from user to user.

Improved Hand-Eye-Coordination - Enhance task execution with flawless coordination. This increases productivity and improves your results.

Combat Fatigue For Improved Focus - OPTA reduces eyestrain thanks to its ergonomic design. This enables sustained focus over time and minimises errors.

Comfortable & Adaptable Design - Extended periods of use with the OPTA are comfortable thanks to ergonomic features, allowing you to work with safety or corrective eyewear.



Stand Options (see Specifications tab for dimensions)

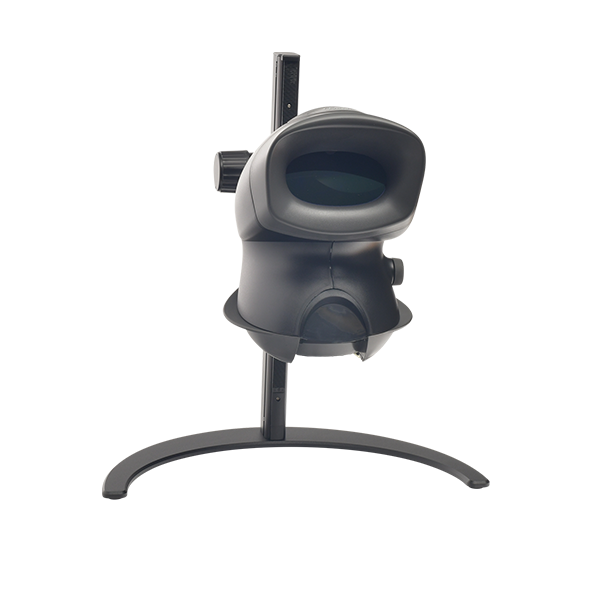

Crescent Stand

OPTA Crescent StandOPTA Crescent Stand

Square Base

OPTA Square BaseOPTA Square Base

Universal Stand

OPTA Universal StandOPTA Universal Stand
Kit Name Part no. Description
OPTA KIT 1 MOS001 Head - Crescent - 4x Objective
OPTA KIT 2 MOS002 Head - Crescent - 6x Objective
OPTA KIT 3 MOS003 Head - Square Base - 4x Objective
OPTA KIT 4 MOS004 Head - Square Base - 6x Objective
OPTA KIT 5 MOS005 Head - Universal Stand - 4x Objective
OPTA KIT 6 MOS006 Head - Universal Stand - 6x Objective

Objective Range Data

Objective Working Distance Field Of View
4x 96mm 34mm
6x 168mm 23mm
Vision ObjectivesVision Objectives
More Information
General Specifications

Optical Data

Objective Lens Working Distance Field Of View
4x 96mm 27.5mm
6x 73mm 19.2mm



Illumination Data

Light intensity measured at subject plane with colour correction filters

Source 20 LEDs
Brightness 9,400 LUX
Colour Temperature ~7000k
Life Up to 10,000 hours



Stand Options

Crescent Stand - Offers open space, clear for working and easy to clean.

A - Workbench to top of head 533mm
B - Length 250mm
C - Width 500mm
D - Throat, optical axis to column 240mm
E - Work surface to bottom of head 297mm



Square Stand - Tough metal base for working on. Low profile base for user comfort.

A - Workbench to top of head 533mm
B - Length 406mm
C - Width 250mm
D - Throat, optical axis to column 240mm
E - Work surface to bottom of head 285mm
Base height 12mm



Universal Arm - Versatile 'lift and lower' universal stand enables easy swinging in and out of position when needed

A - Workbench to top of head 605mm
B - Length 454mm
E - Work surface to bottom of head 320mm
Write Your Own Review
You're reviewing:Vision Engineering OPTA - Stereo Microscope
Your Rating
Customer Questions
How Does The OPTA Work?

The OPTA is a stereo microscope that does not have an eyepiece. Twin optical paths will pass through patented optics, and then exit through a single viewing lens as stereo optical paths. This is exactly how they would with a conventional stereo microscope. This gives the operator an image with both high contrast and high resolution.

What Objective Lenses Do I Require?

This will largely depend on the application and your user preference. When viewing or inspecting an object, it is advantageous to have a larger field of view and a large depth focus. Depending on the size of your subject, the requirements may indicate a lower magnification lens to be more optimal for inspection work.

What's The Difference Between The OPTA And A Bench Magnifier?

Both are used for close-up viewing, but the magnification levels differ. Similarly you cannot achieve the same level of comfort and versatility from a bench magnifier. From the OPTA you get:

  • Improved flexibility in operation

  • wider field of view along with a 3D image

  • Better ergonomics thanks to the ergonomic design of the eyepiece-less viewing head. This places less stress on the eyes and neck.

Whilst the bench magnifier can be beneficial for basic tasks, the OPTA will provide long-term comfort for more demanding applications that require precision.
