Articulated Torque Reaction Arm + clamp for straight tool

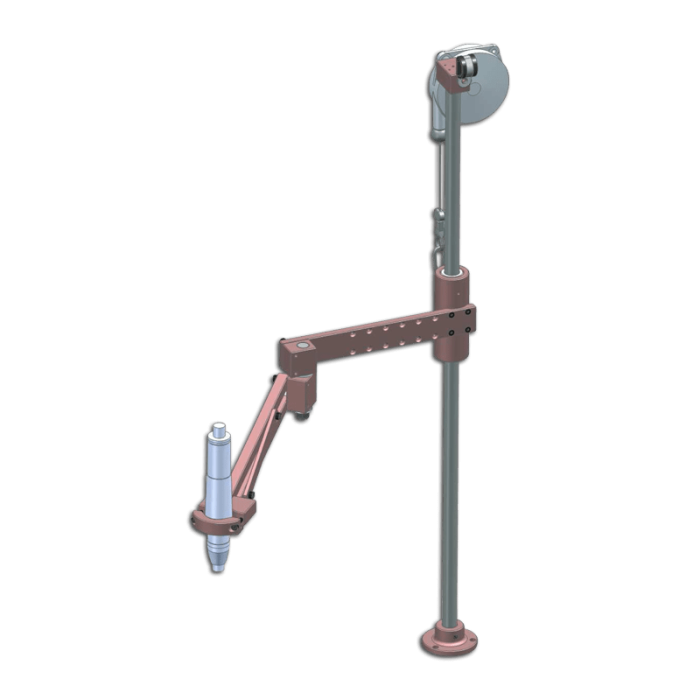

BA 100 R ARTICULATED TORQUE REACTION ARM

The articulated geometry of the BA 100 R torque reaction arm offers many advantages.
With an improved minimum operating radius, neutral movement inertia, easy insertion, it is ideal for tightening operations at reduced distances.
It is compatible with straight, pistol and angle drivers.
You enjoy great versatility of performance.
Its design also guarantees excellent perpendicularity of tightening, a perfectly balanced tool and suppression of MSD.

Designed to be easily installed on your worktops, the articulated geometry of the BA100 R torque reaction arm gives you both an optimized operating radius and high working flexibility. Thanks to its rotary articulation, there is no movement inertia. Compatible with straight, pistol and angle drivers, it gives you great versatility of performance.

BA...R Series are equipped with a rotating articulation enabling a high working flexibility. Swivelling and folding up like a human arm, they are recommended for spaceless working places.

  • Optimum ratio performance/dimensions (ideal for spaceless location)
  • Economical and versatile : possibility to use on the same arm every kind of tools (straight, pistol, angle drivers) thanks to the large choice of clamps.
  • Higher comfort for the operator thanks to the articulated arm (less movement inertia and better positionning accuracy).

Stroke/Working radius options

715mm

900mm

1100 mm

BENEFITS OF BA 100 R ARTICULATED TORQUE REACTION ARM

Comfort
    • No movement inertia
    • Easy screw insertion thanks to articulated geometry
    • Suppression of MSD
    • Balanced tool

Versatility
  • Compatible with straight, pistol and angle drivers with a wide range of gripping tools
Assembly quality
  • Guaranteed perpendicularity of tightening

Delivered with standard clamp for straight tool.

More Information
General Specifications
Max torque 100 Nm
Max load 3.5 kg
Installation Bench mount
Functionalities Verticality
Stroke/Working radius

715mm

900mm

1100 mm

Vertical stroke 480 mm
Mini tool diameter 28 mm
Maxi tool diameter 52 mm
Standard tool holder Straight
Write Your Own Review
You're reviewing:Articulated Torque Reaction Arm + clamp for straight tool
Your Rating

Articulated Torque Reaction Arm + clamp for straight tool

SKU
285-BA-R
