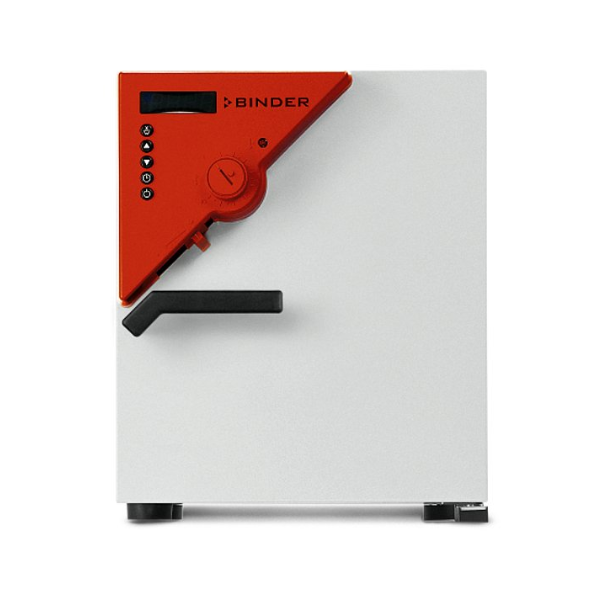

BINDER BD Series - Incubator With Gravity Convection
BINDER - BD Series | Standard- Incubators with gravity convention
The BINDER Incubator of the BD series with gravity convection is the specialist in long-term and stable continuous operation. This incubator is specially designed for gentle incubation of organisms, conditioning of heat-sensitive media, or microbiological heating.
Key Features:
Electronically Controlled APT.line™ Preheating Chamber- This ensures temperature accuracy and reproducible results. It preheates the innner chamber to create an optimal environment for delicate incubation processes.
Inner Glass Door and chrome-plated racks - The inner glass door and chrome-plated racks keep the temperature steady while allowing visibility into the chamber. There are 2 chrome plated racks available for storage and organization.
Precise temperature control - Temperature can be set digitally to within 0.1°C, providing exquisite control for delicate processes.
Adjustable Ventilation - The incubator features adjustable ventilation, featuring a front flap slide and a rear exhaust (Ø 50 mm) to maintain a steady temperature throughout.
Other Features Included As Standard
- Temperature range - from 5 °C (9 °F) above room temperature to 100 °C (212 °F)
- DS control - with integrated timer 0 to 99 hrs
- Independent temperature safety device - class 3.1 (DIN 12880) with optical alarm
- RS 422 interface - for communication software APT-COM™ DataControlSystem
- Units - up to 115 liters are stackable
- BINDER test confirmation
Models in BD Series
| BD 23 | 0.71 cu.ft |
| MPN | 9010-0187 |
| BD 56 | 2.01 cu.ft |
| MPN | 9010-0323 |
| BD 115 | 3.96 cu.ft |
| MPN | 9010-0325 |
| BD 260 | 8.93 cu.ft |
| MPN | 9010-0329 |
| BD 400 | 14.13 cu.ft |
| MPN | 9010-0073 |
| BD 720 | 26.03 cu.ft |
| MPN | 9010-0331 |
Additional Options & Accessories (For Full List & Part Numbers See Product Downloads)
- Access ports with Silicon Plug - Available in 10, 30 or 50 mm and also accept externa measuring instruments.
- Waterproof interior socket - The switchable 230 V AC socket is waterproof and perfect for interior use, with a maximum power rating of 500 W and an IP 65 protection level. 50 °C is its maximum operating temperature.
- Additional PT 100 Temperature sensor - For precise temperature monitoring with a 3- pin LEMO connector that would help in accurate temperature monitoring.
- Temperature measurement acc. to DIN 12880 - 15 measuring points at 37 °C or at specified temperature with measuring protocol and certificate
- Calibration certificate - measurement in center of chamber at 37 °C or at specified testing temperature
- Extension to calibration certificate - Each additional measurement at additional measuring point or testing temperature
- Anti-slip rubber pads - for safe stacking (1 set of 4 pieces)
- Data Logger Kit T 220 - For continuous temperature recording of -90 °C to 220 °C. Kit includes 1 data logger, PT 100 sensor with 2 m Teflon extension cable and 1 fixture for mounting to the BINDER unit
- Data Logger Software - Configuration and evaluation software for all BINDER Data Logger Kits, incl. data cable
- Racks and shelves - Chrome plated or Stainless steel racks and perforated stainless steel shelves.
- Door lock- for enhanced security
Please contact sales office for quotation
