BINDER FD Series | Drying and Heating Chambers With Forced Convection
BINDER FD Series Drying and Heating Chambers | 23, 56, 115, 260, 720

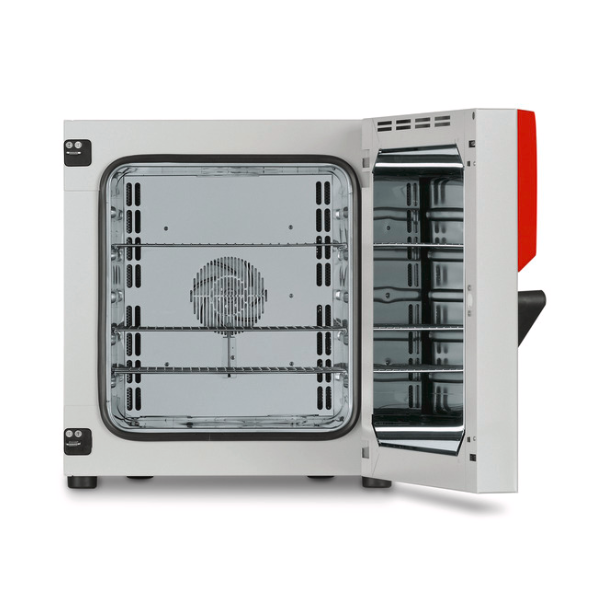

BINDER FD drying and heating chambers with forced convections are renowned for their high quality and reliability. These heating ovens are best applicable when fast drying and sterilisation is needed.
Due to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time during experiments.
Key Features

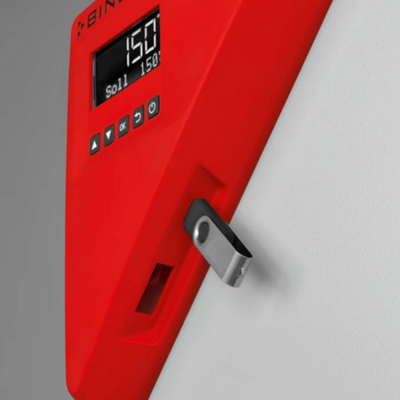

Easy Data Logging - Data from your usage is easily logged or input through a USB connector or Ethernet.

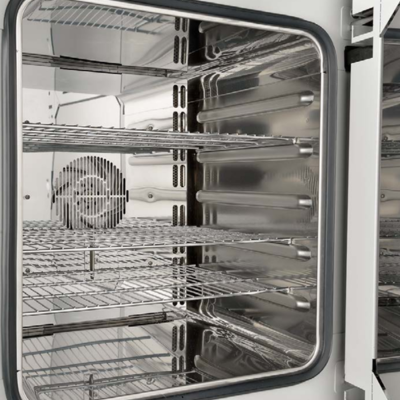

Best Energy Efficiency And Low Installation Requirements - Low heat dissipation and an optimised heating system.

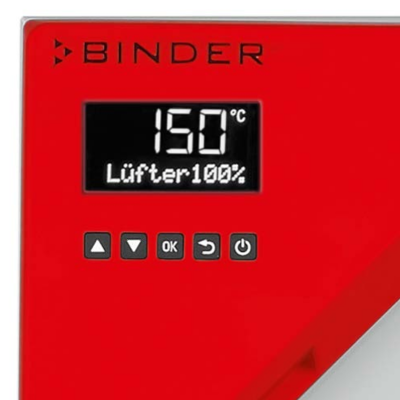

Easy, Intuitive Handling - With a high quality LCD display, the BINDER oven has excellent readability, alphanumeric display, and various functions provide a user friendly interface with multiple language selections.

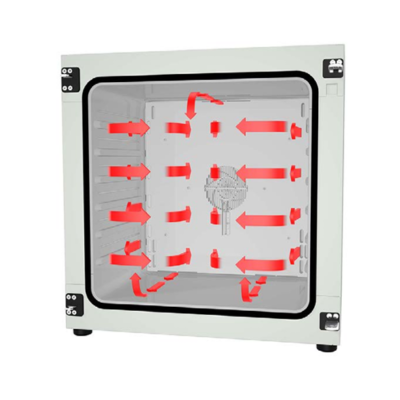

Completely Homogeneous Temperature Distribution - This feature of the ovens provides excellent spatial and temporal temperature accuracy with the all-new generation of APT.line tchnology.
Other Features Included As Standard
- Temperature range: +10 °C above ambient temperature to +300 °C
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Units up to 115 L are stackable
- Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
- Ergonomic handle design
- USB port for recording data
Models In The FD Series
| FD 23 | 0.7 cu.ft |
| MPN | 9010-0194 |

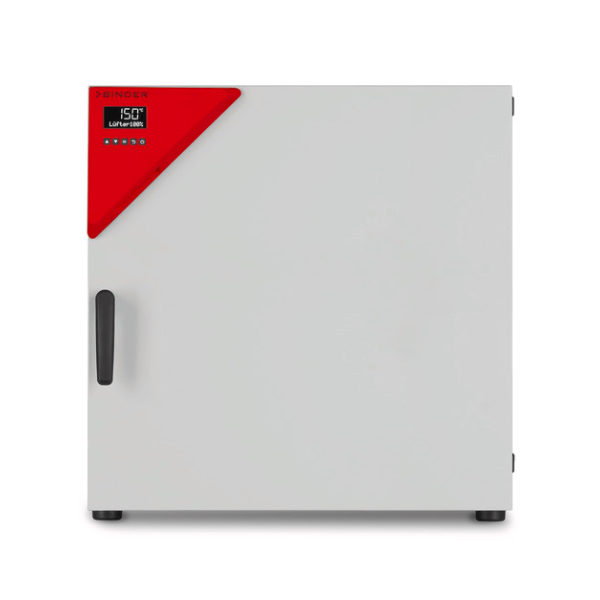

| FD56 | 2.12 cu.ft |
| MPN | 9010-0303 |
| FD 115 | 4.10 cu.ft |
| MPN | 9010-0305 |

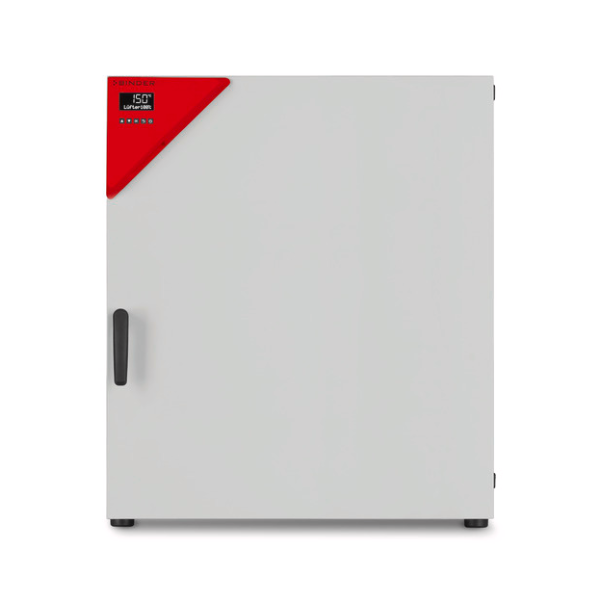

| FD 260 | 9.15 cu.ft |
| MPN | 9010-0309 |

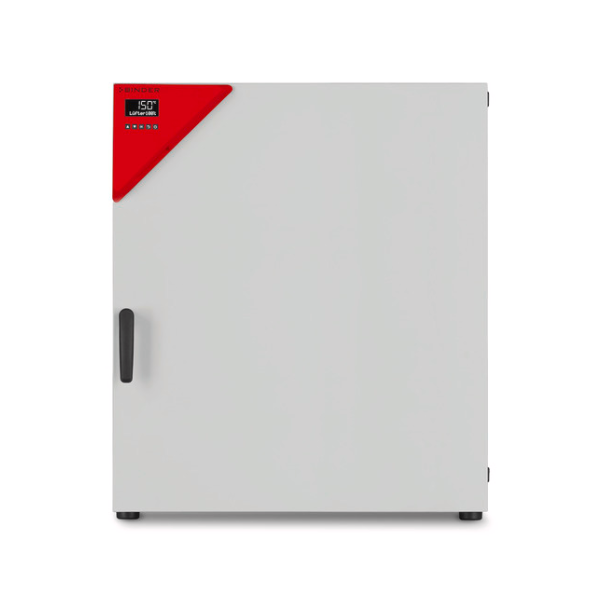

| FD 720 | 26.17 cu.ft |
| MPN | 9010-0311 |
Additional Options & Accessories (For Full List & Part Numbers See Product Downloads)
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters and positions (left, right, or top)
- Viewing window and interior lighting: Viewing window in the door with a triple-glazed insulating glass and interior lighting for easy visibility of the samples.
- Shelf racks: Perforated shelves or shelf racks, chrome-plated or made from stainless steel.
- HEPA air filter: Particle filter on fresh air supply for unit; filter classification H14 (acc. to. EN 1822-1:2009, > 99.995% at 0.3 µm).
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
- BINDER INDIVIDUAL: Using a BINDER series production product as a basis, we develop individual solutions as a single unit or in small batches. All products are tested, certified, and supplied with a full functional guarantee and warranty. More information is available in the accessories and services chapter.
