BINDER FED Series | Drying & Heating Chambers | Forced Convection And Enhanced Timer Functions
BINDER FED Series - Drying & Heating Chambers | 56, 115, 260, 720
The BINDER heating chambers of the FED series, provide almost unlimited capacity and are particularly adaptable. With advanced timing functions on the dashboard and a controllable fan, temperature and convection conditions are easily controlled.
Possessing the best energy efficiency on the market, the FED series has excellent temporal and spatial temperature accuracy with a range up to 300°C.
Key Features

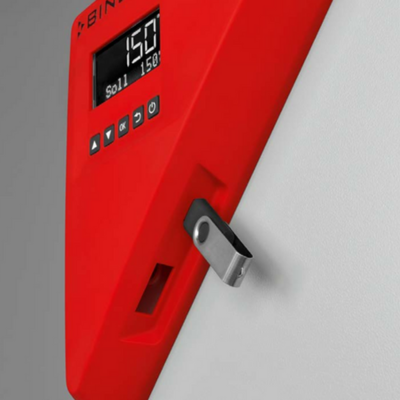

Easy Data Logging - Data from your usage is easily logged or input through a USB connector or Ethernet.

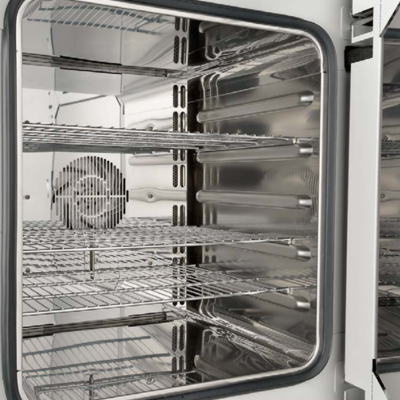

Best Energy Efficiency And Low Installation Requirements - Low heat dissipation and an optimised heating system.

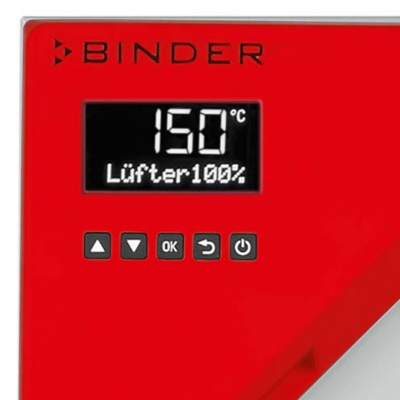

Easy, Intuitive Handling - With a high quality LCD display, the BINDER oven has excellent readability, alphanumeric display, and various functions provide a user friendly interface with multiple language selections.

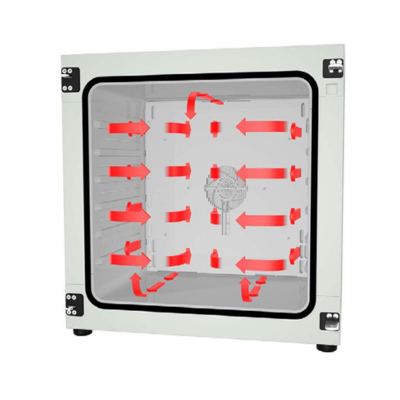

Completely Homogeneous Temperature Distribution - This feature of the ovens provides excellent spatial and temporal temperature accuracy with the all-new generation of APT.line tchnology.
Other Features Included As Standard
- Temperature range: +10 °C above ambient temperature to +300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed • Controller with LCD display and enhanced time functions
- Electromechanical control of the exhaust air flap

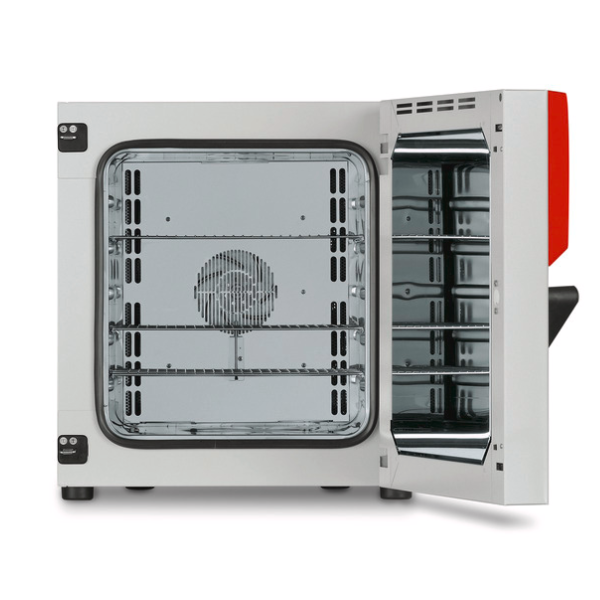

- 2 chrome-plated racks
- Units up to 115 liters are stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
Models In The FED Series

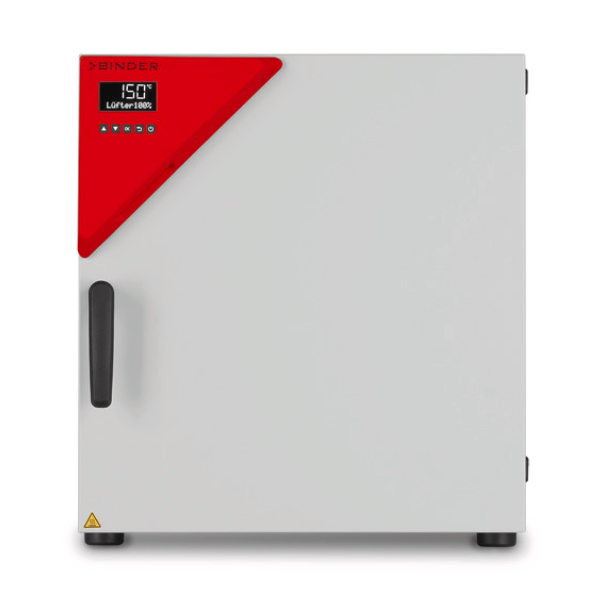

| FED 56 | 2.12 cu.ft |
| MPN | 9010-0295 |
| FED 115 | 4.10 cu.ft |
| MPN | 9010-0293 |

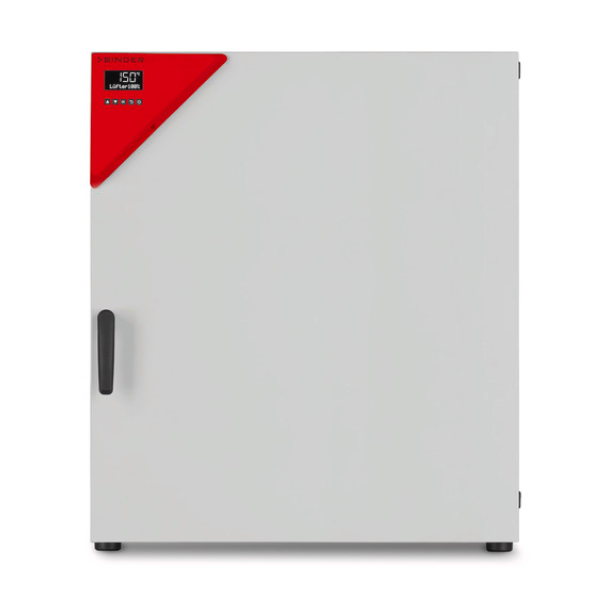

| FED 260 | 9.15 cu.ft |
| MPN | 9010-0299 |

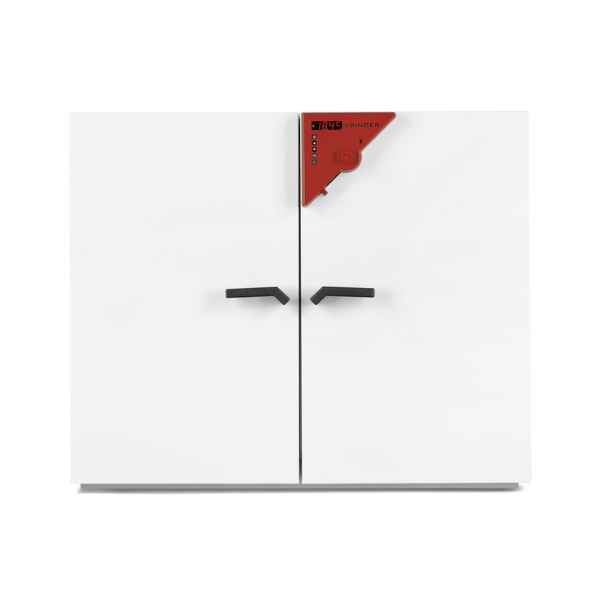

| FED 400 | 14.13 cu.ft |
| MPN | 9010-0216 |

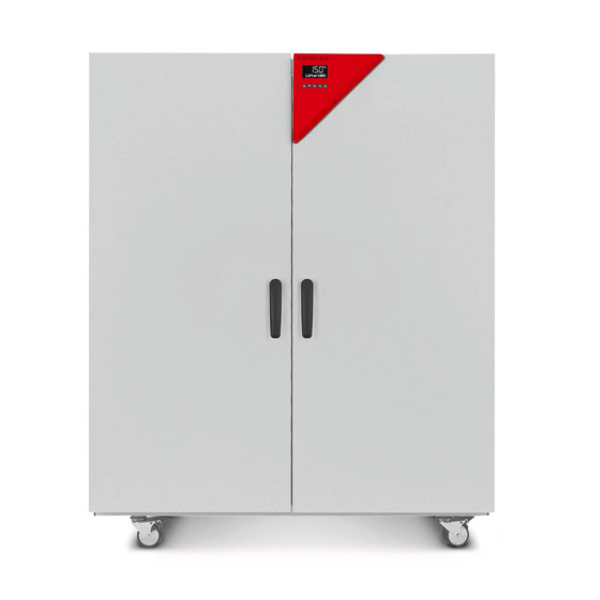

| FED 720 | 26.17 cu.ft |
| MPN | 9010-0301 |
Additional Options & Accessories (For Full List & Part Numbers See Product Downloads)
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters and positions (left, right, or top)
- Viewing window and interior lighting: Viewing window in the door with a triple-glazed insulating glass and interior lighting for easy visibility of the samples.
- Shelf racks: Perforated shelves or shelf racks, chrome-plated or made from stainless steel.
- HEPA air filter: Particle filter on fresh air supply for unit; filter classification H14 (acc. to. EN 1822-1:2009, > 99.995% at 0.3 µm).
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
- BINDER INDIVIDUAL: Using a BINDER series production product as a basis, we develop individual solutions as a single unit or in small batches. All products are tested, certified, and supplied with a full functional guarantee and warranty. More information is available in the accessories and services chapter.
