BINDER KBF Series | Humidity Test Chambers | With Large Temperature Range
BINDER KBF Series With Large Temperature Range | 115, 240, 720
BINDER KBF humidity test chambers have a large temperature and humidity range from 0 °C to +70 °C and 10 % to 80 %.
These ovens are ideal for all test procedures in the pharmaceutical industry according to ICH Q1A: long-term stability testing, accelerated stability testing, and also stress tests, where particularly high temperatures and humidity levels are used.
A humidity test chamber features an interior in which the required climate conditions, whether that be temperature or relative humidity are generated and maintained over a predefined period.
Key Features

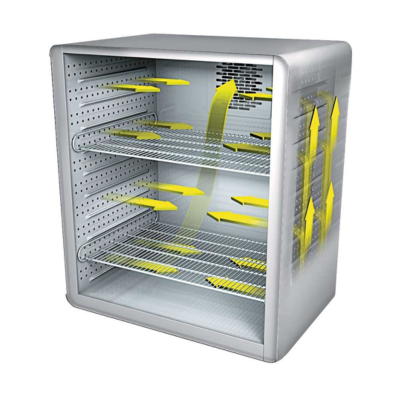

Homogeneous Temperature Distribution - Binder APT.line preheating chamber technology ensures long-term operational stability even under full load.

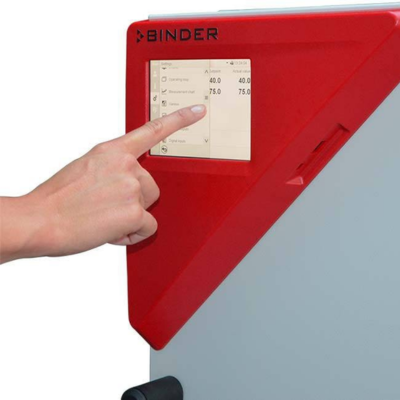

Intuitive Touchscreen Controller - Modern controller technology with time-segment and real-time programming with internal data recording.

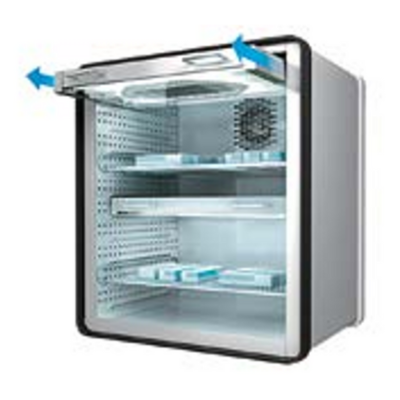

Homogeneous Light Distribution - Illumination cassettes with ICH-Q1B-compliant light sources provide flexible placement for photostability tests.

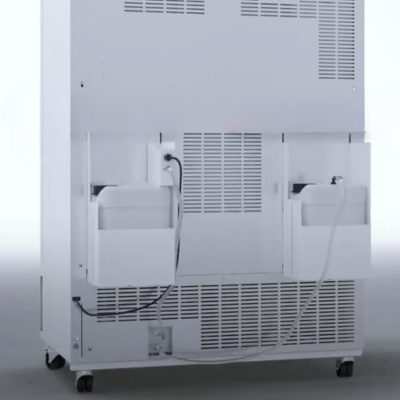

Flexible Water And Waste Water Management - Uses the connection to the domestic water supply or an optional external water supply.
Other Features Included As Standard
- Temperature range: 0 °C to 70 °C
- Humidity range: 10 % to 80 % RH
- APT.line™ preheating chamber technology
- Humidity regulation: capacitive humidity sensor and vapor humidification
- Intuitive touchscreen controller: time-segment and real-time programming Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- Inner chamber: stainless steel material
Models In The KBF Series
| KBF 115 | 3.6 cu.ft |
| MPN | 9020-0320 |
| KBF 240 | 8.7 cu.ft |
| MPN | 9020-0322 |
| KBF 720 | 24.7 cu.ft |
| MPN | 9020-0324 |

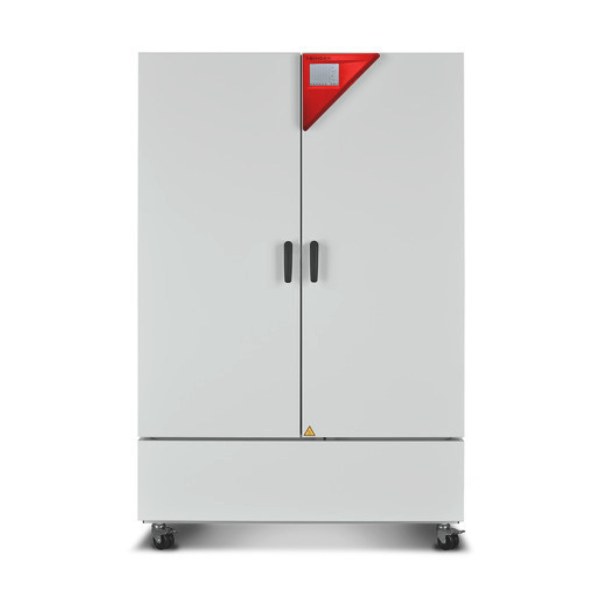

| KBF 1020 | 0.04 cu.ft |
| MPN | 9020-0326 |
Additional Options & Accessories (For Full List & Part Numbers See Product Downloads)
- Access port with silicone plug - For introducing external measuring instruments. Large selection of different diameters and positions (left, right, or top)
- BINDER PURE AQUA SERVICE - System for preparation or complete desalination of tap water, complete set containing PURE AQUA 300 single-use cartridge, measuring device, and all necessary connecting parts
- Data Logger Kit TH - Independent temperature and humidity data logging. The tailored product solution contains helpful accessories: From the magnetic mounting of the data logger to the BINDER unit and securing sensor cable for accurate readings.
- LED light bar sets - LED light bars in three different lengths (30, 50, 90 cm) can be easily and variably positioned in the BINDER unit, including various attachment options and control unit. Additional light bars can be added as desired.
- Services - You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
- BINDER INDIVIDUAL - Using a BINDER series production product as a basis, we develop individual solutions as a single unit or in small batches. All products are tested, certified, and supplied with a full functional guarantee and warranty. More information is available in the accessories and services chapter.
