BINDER KT Series | Cooling Incubators | Peltier Technology

BINDER KT Series | Cooling Incubators | Peltier Technology

The KT series combines outstanding performance with its impressive energy efficiency and environmental friendliness. The cooled incubators of the KT series are state of the art in application and protect the samples.

Even at high environmental conditions, incubation conditions are safe and reproducible, with an option for hot air disinfection at 100°C.

Key Features:

Stainless Steel Interior - Inner chamber and all fixtures are made of stainless steel. This means there is no risk of corrosion and cleaning after use is made easy.

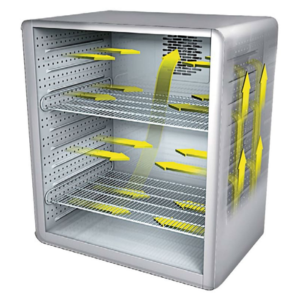

Homogeneous Temperature Distribution - BINDER's APT.line preheating chamber technology ensures long-term operational stability even under a full load.

Smart - Long incubations without drying out and condensation-free operation due to unique protection against drying out and condensation.

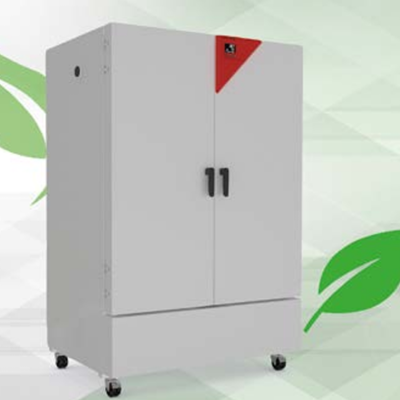

Cost Effective - Exemplary environmental performance thanks to maximum energy efficiency and avoidance of climate-damaging refrigerants.

Other Features Included As Standard

  • Temperature range: -10 °C to +100 °C
  • APT.line™ preheating chamber technology
  • Up to 30% lower energy consumption compared to the previous mode
  • Cooling with compressor cooling unit
  • Door heating system from 240 liters
  • Adjustable fan speed
  • Controller with time-segment and real-time programming
  • Inner door made of tempered safety glass
  • 2 stainless steel racks
  • Units up to 115 liters are stackable

Models In The KT Series

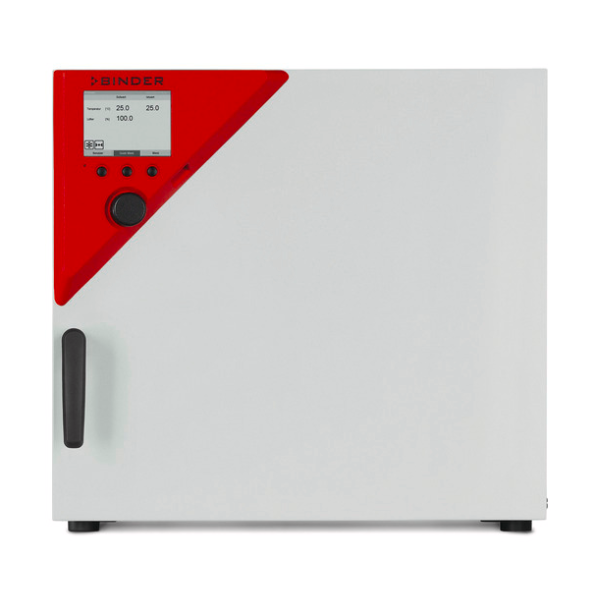

BINDER KT 53BINDER KT 53
KT 53 1.87 cu.ft
MPN 9020-0311

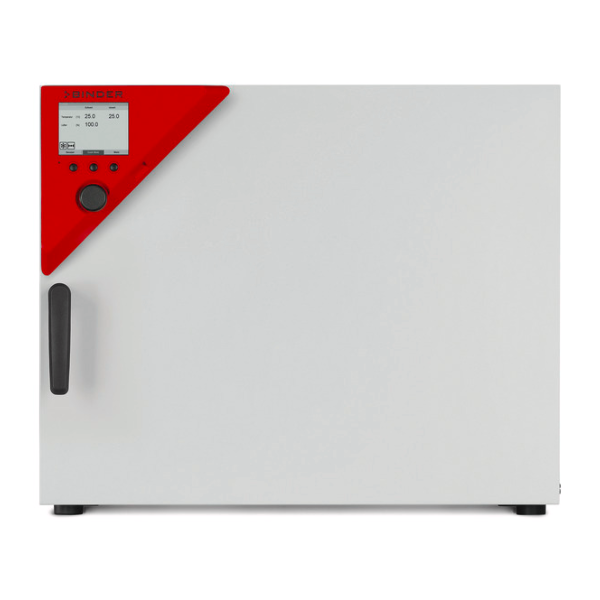

BINDER KT 115BINDER KT 115
KT115 3.60 cu.ft
MPN 9020-0313

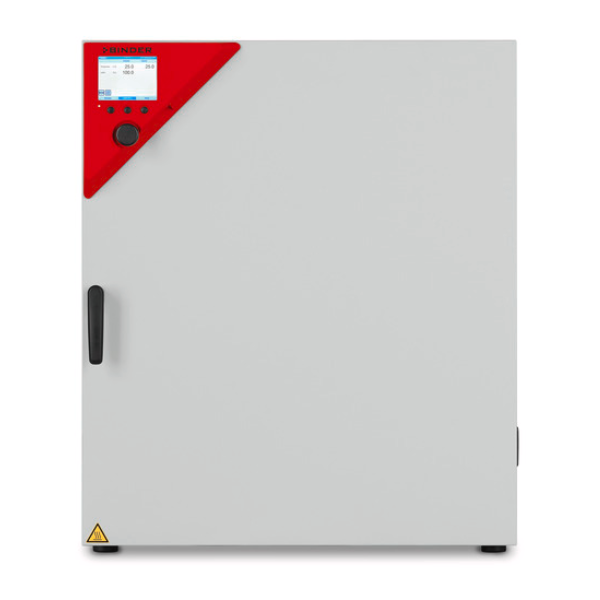

BINDER KT 170BINDER KT 170
KT 170 5.76 cu.ft
MPN 9020-0289


Additional Options & Accessories (For Full List & Part Numbers See Product Downloads)

  • Access port with silicone plug -  For introducing external measuring instruments. Large selection of different diameters and positions (left, right, or top)
  • LED light bar sets - LED light bars in three different lengths (30, 50, 90 cm) can be easily and variably positioned in the BINDER unit, including various attachment options and control unit. Additional light bars can be added as desired.
  • Services - You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
  • Door lock - Lockable door handle prevents unauthorized access.
More Information
General Specifications
Model Number Of Shelves (Standard/Max)
KT 53 2/5
KT 115 2/6
KT 240 2/10



Measurements KT 53
Interior Volume (L) 53
Net Weight Of Unit (empty) (kg) 63
Permitted Loads (kg) 40
Load Per Rack (kg) 15
  KT 115
Interior Volume (L) 102
Net Weight Of Unit (empty) (kg) 83
Permitted Loads (kg) 100
Load Per Rack (kg) 30
  KT 170
Interior Volume (L) 163
Net Weight Of Unit (empty) (kg) 102
Permitted Loads (kg) 120
Load Per Rack (kg) 30



Internal Dimensions KT 53
Width (mm) 400
Height (mm) 400
Depth Net (mm) 334
  KT 115
Width (mm) 600
Height (mm) 455
Depth Net (mm) 355
  KT 170
Width (mm) 600
Height (mm) 765
Depth Net (mm) 355



Housing Dimensions KT 53
Width Net (mm) 660
Height Net (mm) 635
Depth Net (mm) 630
  KT 115
Width Net (mm) 860
Height Net (mm) 715
Depth Net (mm) 655
  KT 170
Width Net (mm) 860
Height Net (mm) 1025
Depth Net (mm) 655



Performance Data Temperature KT 53
Temperature range 4-100
Temperature variation at 37°C 0.3
Temperature fluctuation at 37°C 0.1
  KT 115
Temperature range 4-100
Temperature variation at 37°C 0.3
Temperature fluctuation at 37°C 0.1
  KT 170
Temperature range 4-100
Temperature variation at 37°C 0.4
Temperature fluctuation at 37°C 0.1



Nominal Power (230V) (kW) Model
0.4 KT 53
0.7 KT 115
0.8 KT 170
