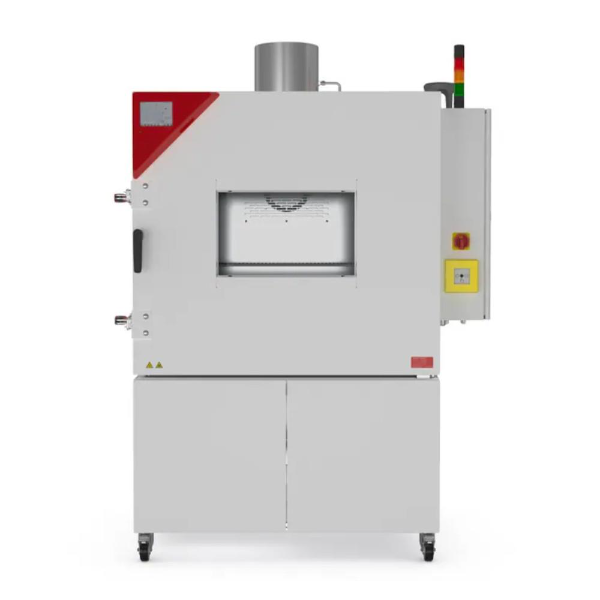

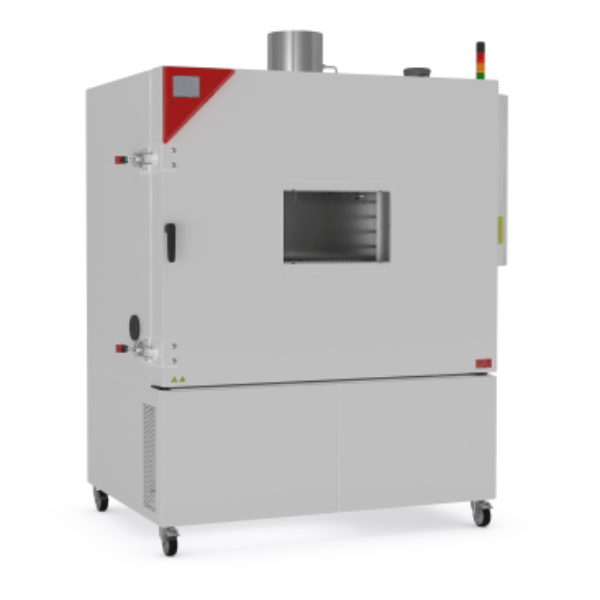

BINDER LIT MK 240 | Battery Test Chamber with Safety Features

BINDER's battery test chambers are intended for longevity, efficiency, and stress testing during battery production and quality assurance. The LIT MK series promotes safety by including built-in detection and fire suppression capabilities. TÜV SÜD has certified the LIT MK 240 and LIT MK 720 models as EUCAR LEVEL 6 compliant, assuring that they fulfil the highest safety and performance standards for battery testing.

Key Features:

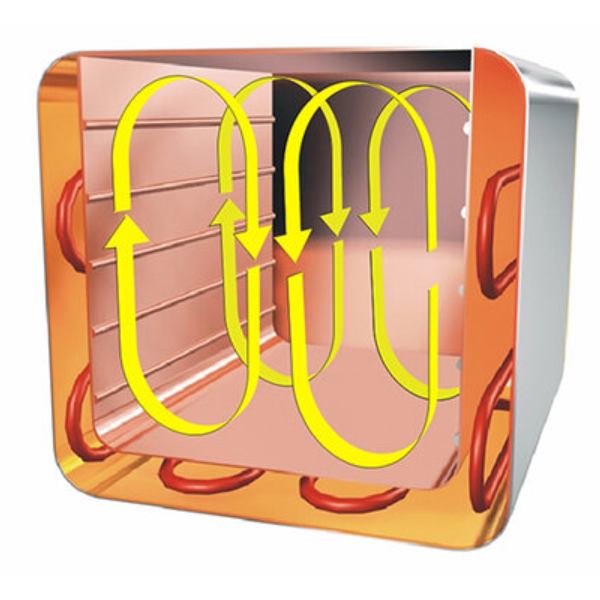

The APT.line™ Preheating Chambers -  This ensures accurate and reproducible temperature readings. It preheats the inside chamber, creating an ideal atmosphere for sensitive incubation activities.

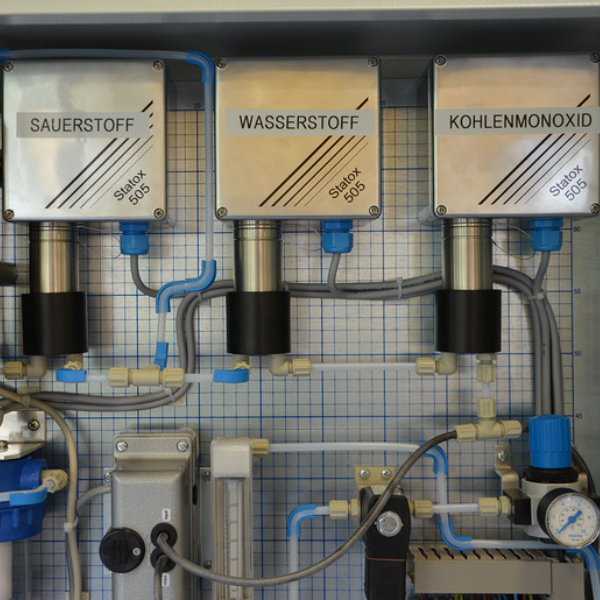

Safety Monitoring - Continuous gas monitoring (carbon monoxide, hydrogen, and oxygen) maintains a safe testing environment by detecting potentially harmful changes in the chamber's atmosphere.

Independent Temperature Safety Device - This guarantees that the temperature is constantly monitored and kept within safe limits, with an automatic visual alarm triggered when necessary.

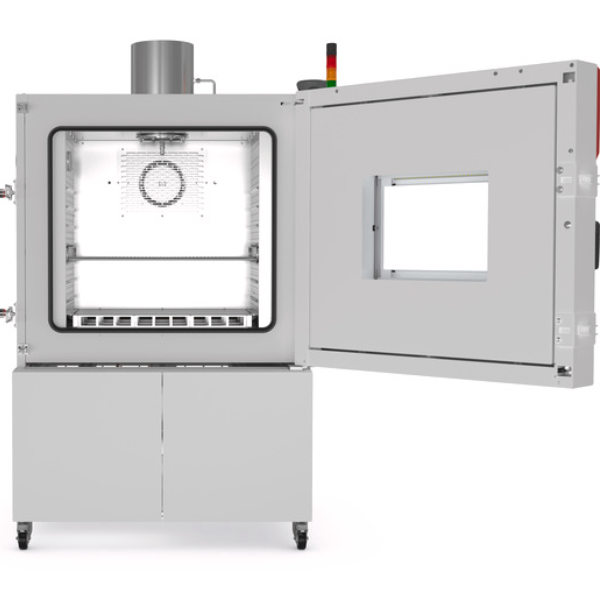

Heated Viewing Window - The heated viewing window with LED lighting avoids condensation, allowing for clear observation of the test sample while keeping the chamber's internal environment at optimal conditions.

Other Features Included As Standard

• Temperature Range -  -40°C to +110°C
• Touchscreen controller - with graphical pressure and temperature display
• Internal data logger - measured values can be read in open format via a USB
• Universal connection - for ventilation with ambient air or inert gas
• Stainless Steel Rack
• R-452A CFC-Free Refrigerant - Eco-friendly refrigerant for effective cooling

Additional Options & Accessories (For Full List & Part Numbers See Product Downloads)

• Electromechanical door-locking mechanism (manual or time-controlled)
• Gas detection systems

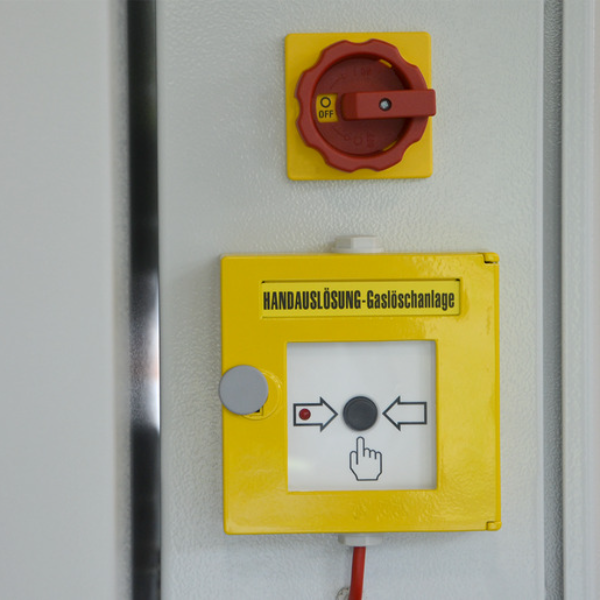

• Fire suppression equipment
• Inertization equipment
• Heavy-duty castors and supports for heavy loads
• Silicone plugs for access ports (80 mm)
