BINDER M Series | Drying & Heating Chambers | Forced Convection
BINDER M Series - Drying & Heating Chambers | 56, 115, 260, 720
With a maximum +300°C and various programming options, the BINDER M Series material test chambers are ideal for material and aging tests. With a high air flow and fowerful fans, rapid heating up is ensured.
Key Features:

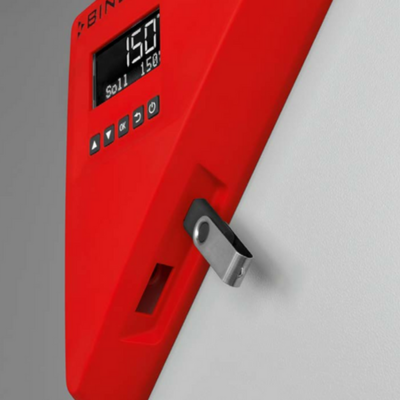

Easy Data Logging - Data from your usage is easily logged or input through a USB connector or Ethernet.

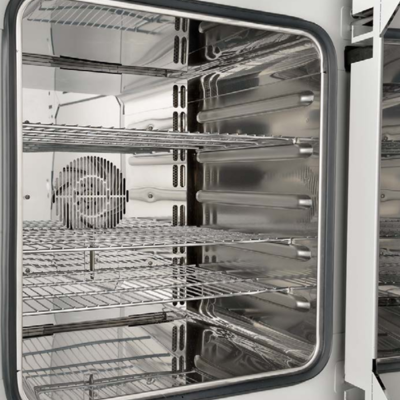

Best Energy Efficiency And Low Installation Requirements - Low heat dissipation and an optimised heating system.

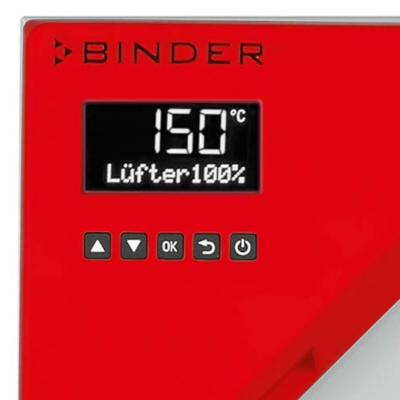

Easy, Intuitive Handling - With a high quality LCD display, the BINDER oven has excellent readability, alphanumeric display, and various functions provide a user friendly interface with multiple language selections.

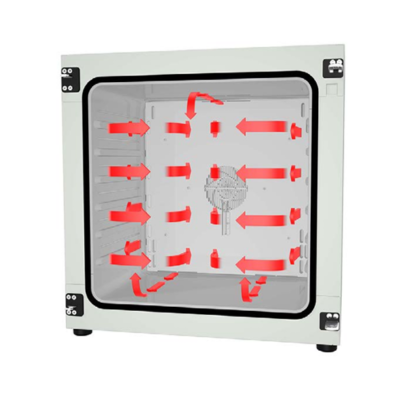

Completely Homogeneous Temperature Distribution - This feature of the ovens provides excellent spatial and temporal temperature accuracy with the all-new generation of APT.line tchnology.
Other Features Included As Standard
- Temperature range: +10 °C above ambient temperature to +300 °C
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Units up to 115 L are stackable
- Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
- Ergonomic handle design
- USB port for recording data
Models In The M Series

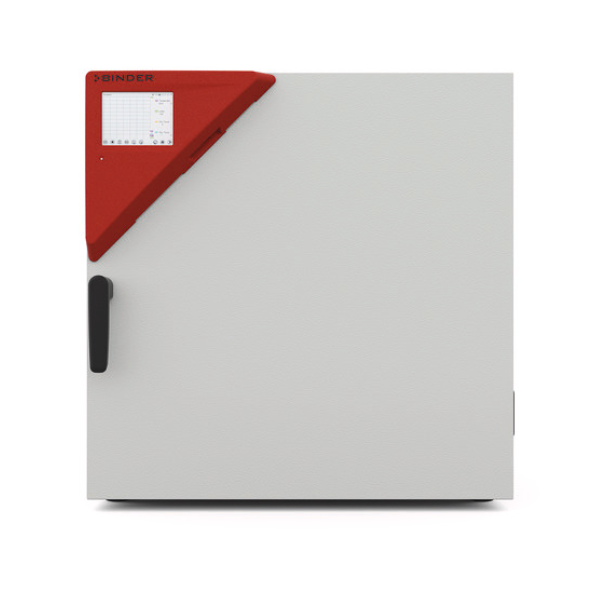

| M 56 | 2.08 cu.ft |
| MPN | 9010-0371 |

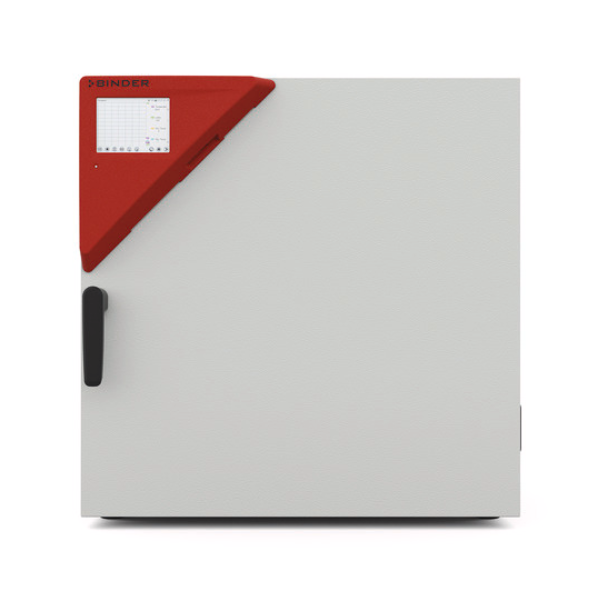

| M 115 | 3.99 cu.ft |
| MPN | 9010-0372 |

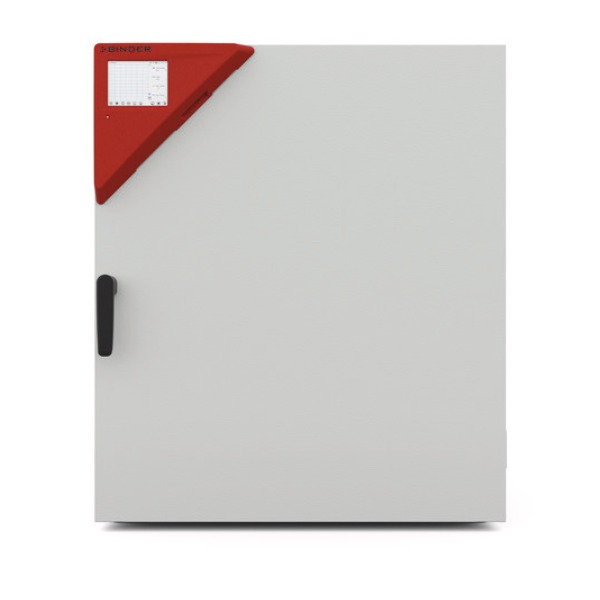

| M 260 | 9.04 cu.ft |
| MPN | 9010-0373 |

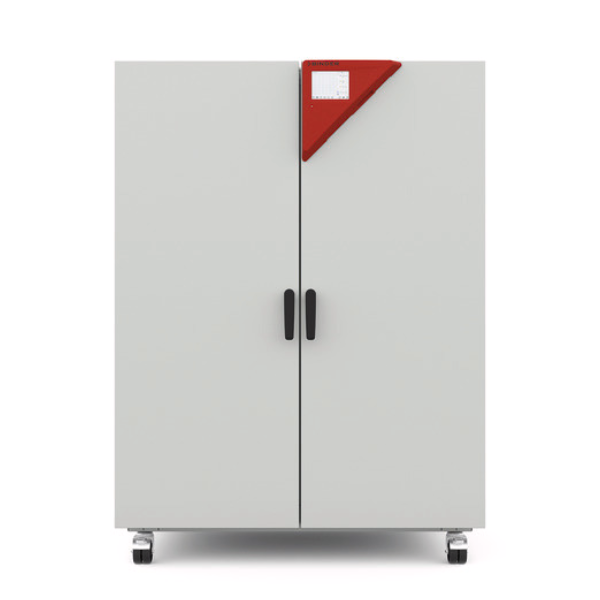

| M 720 | 25.95 cu.ft |
| MPN | 9010-0374 |
Additional Options & Accessories (For Full List & Part Numbers See Product Downloads)
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters and positions (left, right, or top)
- Shelf racks: Perforated shelves or shelf racks, chrome-plated or made from stainless steel.
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
- BINDER INDIVIDUAL: Using a BINDER series production product as a basis, we develop individual solutions as a single unit or in small batches. All products are tested, certified, and supplied with a full functional guarantee and warranty. More information is available in the accessories and services chapter.
