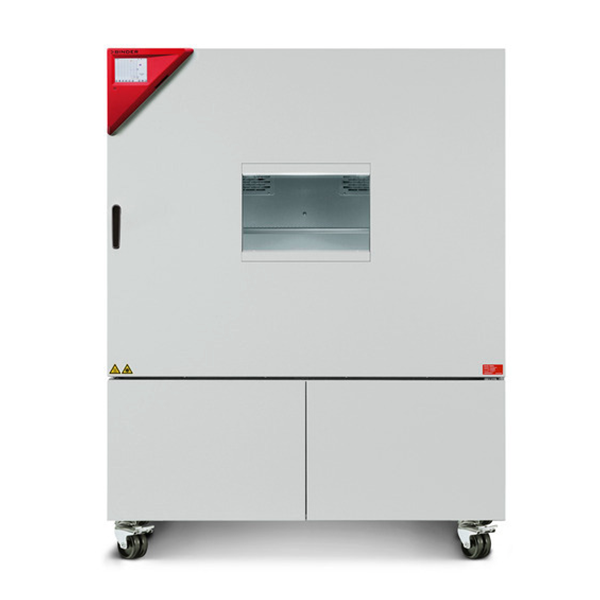

BINDER MKF Series | Environmental test chamber for complex temperature profiles
BINDER MKF Series - Environmental test chamber for complex temperature profiles
A BINDER environmental simulation chamber of the MKF series is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The ease of operation and comprehensive standard equipment for this environmental simulation chamber ensure something special in use.
Key Features:
Electronically Controlled APT.line™ Preheating Chamber - The APT.line™ preheating chamber is electronically controlled for accurate temperature management and consistent results.
Temperature Range - The temperature range is -40 °C to 180 °C (Without Humidity) and 10 °C to 95 °C (With Humidity)
Humidity Range - The humidity can be controlled from 10% to 98% RH, providing flexibility for a wide range of environmental testing and conditioning procedures
MCS Controller- The MCS controller has enhanced testing capabilities. It can store up to 25 programs, each with 100 portions, for a total of 500 program segments.
Other Features Included As Standard
- User-Friendly LCD Screen- For easy operation and navigation.
- Integrated Electronic Chart Recorder-Tracks and records key process data.
- Real-Time Clock- Keeps track of the timing of the program.
- Electronically Controlled Humidification & Dehumidification System
- Heated Viewing Window- With interior lighting for clear visibility.
- Independent Adjustable Temperature Safety Device (Class 2)
- Ethernet Interface- Supports optional GMP/GLP and FDA 21 CFR Part 11 compliance with APT-COM™ software.
- Stainless Steel Rack Included
- 4 Casters (2 with Brakes)
- 230 V Power Socket- Located on the right-side operating panel for convenient access.
- Access Ports Ø 80 mm (Right and Left)
Models In The MKF Series
| MKF56 | 2.12 cu.ft |
| MPN | 9020-0378 |
| MKF115 | 4.06 cu.ft |
| MPN | 9020-0379 |
| MKF240 | 8.05 cu.ft |
| MPN | 9020-0380 |
| MKF400 | 14.73 cu.ft |
| MPN | 9020-0408 |
| MKF720 | 25.92 cu.ft |
| MPN | 9020-0381 |
| MKF1020 | 35.00 cu.ft |
| MPN | 9020-0409 |
Additional Options & Accessories (For Full List & Part Numbers See Product Downloads)
- Access Ports with Silicone Plug- Available in sizes: 30, 50, 80, 100, and 125 mm.
- Analog Output for Temperature- 4-20 mA with a 6-pin DIN socket (non-adjustable).
- Securing Elements for Additional Rack Fastening- Set of 4 for additional rack stability.
- Door Lock
- Additional Measuring Channel for Specimen Temperature- With flexible PT 100 temperature sensor for data recording.
- RS 422 Interface
- Calibration Certificate for Temperature & Humidity- Factory standard with protocol and certificate for calibration at 25 °C / 60% RH.
- BINDER PURE AQUA SERVICE- Includes single-use cartridge, cabling, and pump.
- Data Logger Kits
TH 100: With a single combined sensor for temperature and humidity.TH 220: With a PT 100 sensor for temperature recording. - Stainless Steel Rack
- Water Cooling
Please contact sales office for quotation
