BINDER MKT Series | Environmental test chamber for complex temperature profiles
BINDER MKT Series - Environmental test chamber for complex temperature profiles
Environmental simulation chamber for complex temperature profiles.
Temperature ranges between -70 °C and 180 °C, with the advantage of natural simulation make an MKT series environmental simulation chamber from BINDER unique. This environmental simulation chamber meets the highest precision and performance demands for cyclical temperature testing.
Key Features:

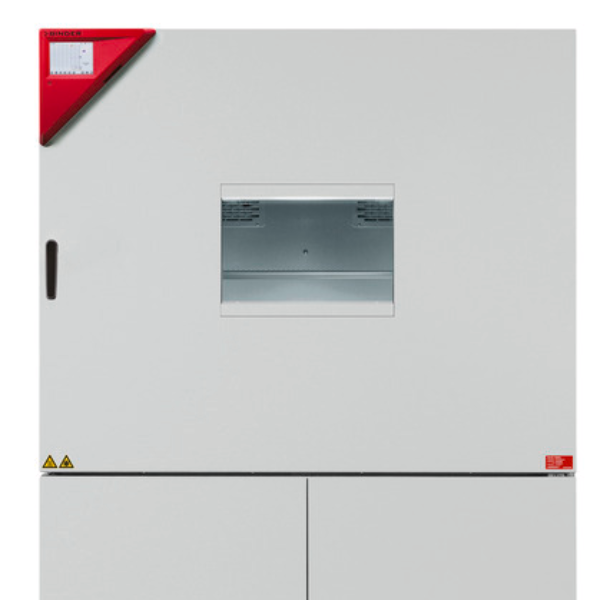

User-Friendly LCD Colour Screen- The bright, colour LCD screen makes it simple to navigate menus and set up your tests, offering clear, easy-to-read displays of all your settings and data.

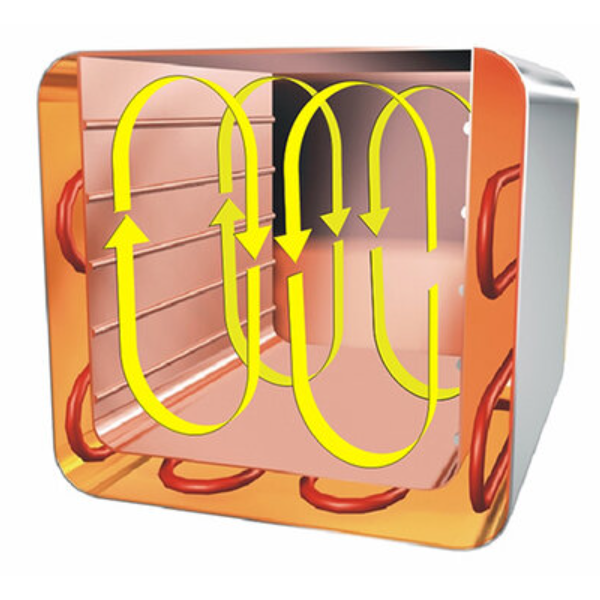

Electronically Controlled APT.line™ Preheating Chamber- Designed for precise temperature control, ensuring that your results are always accurate

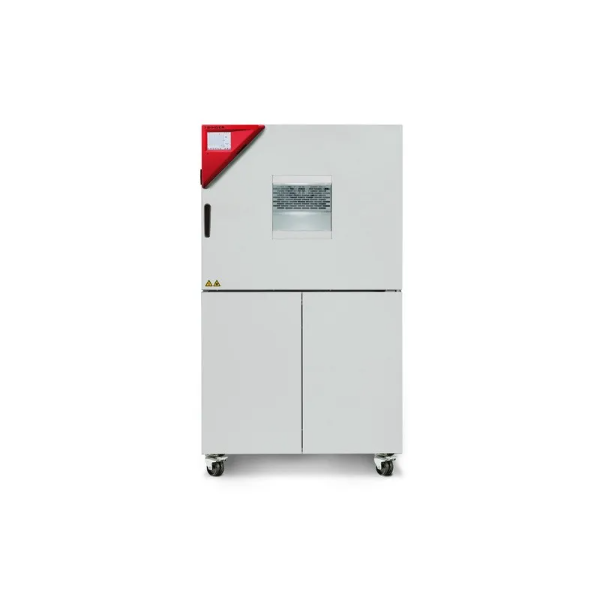

MCS Controller- The MCS controller allows you to store up to 25 programs, each containing 100 sections, and a total of 500 program segments.

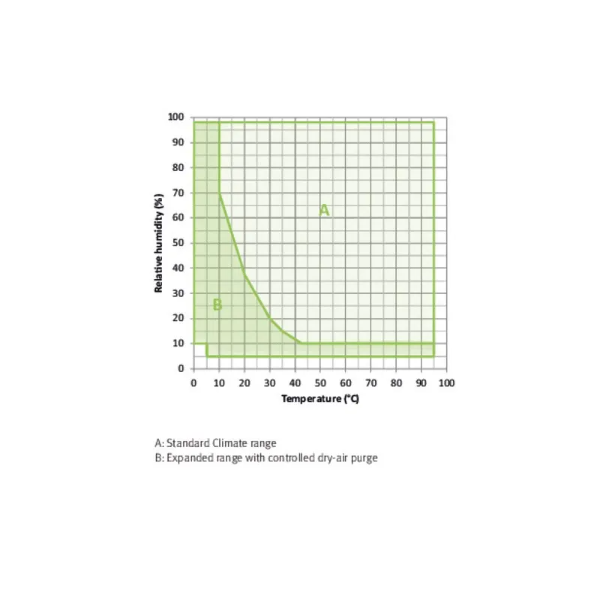

Temperature Range- The temperature range is -70 °C to 180 °C (Without Humidity) and 10 °C to 95 °C (With Humidity)
Other Features Included As Standard
- Easy-to-Read Menu Guide
- Integrated Electronic Chart Recorder
- Variety of options for the graphic display of process parameters
- Real-Time Clock
- Heated Viewing Window with Interior Lighting
- 230 V Power Socket on the Right-Side Operating Panel
- Adjustable Ramp Function via Program Editor
- Access Ports Ø 80 mm (Left and Right Sides)
- Independent Adjustable Temperature Safety Device (Class 2)
- 4 potential-free relay outputs that can be activated via MCS controller
- BINDER Communication Software APT-COM™ 3 Basic Edition
- 4 Casters with 2 Brakes
- BINDER Test Confirmation
Models In The MKT Series

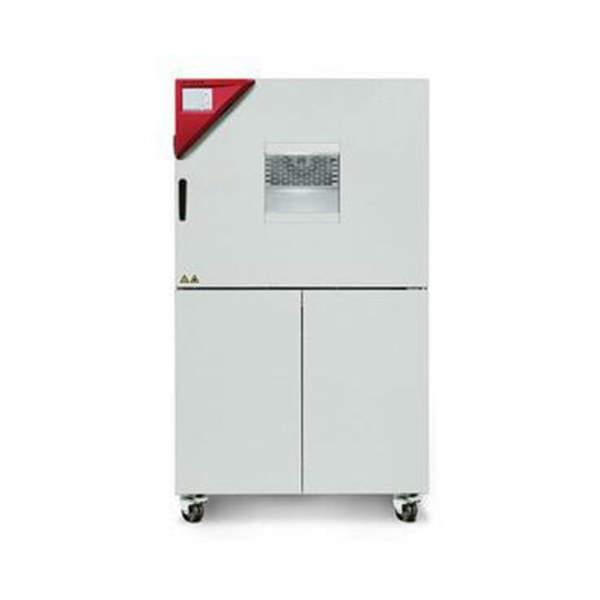

| MKT115 | 4.06 cu.ft |
| MPN | 9020-0385 |

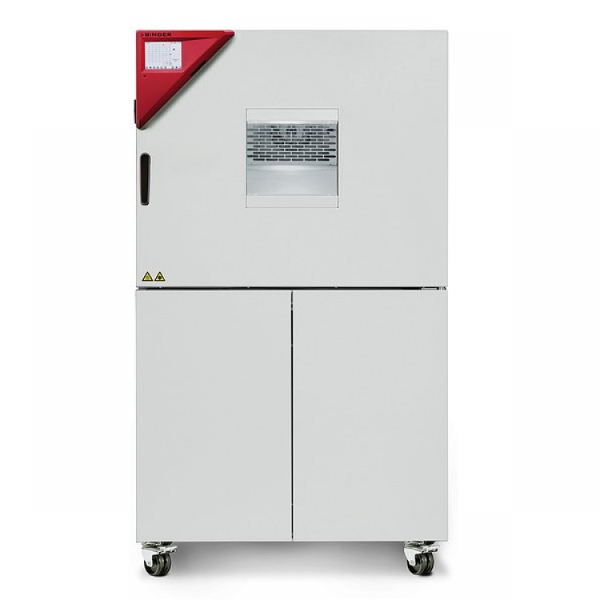

| MKT240 | 8.05 cu.ft |
| MPN | 9020-0386 |

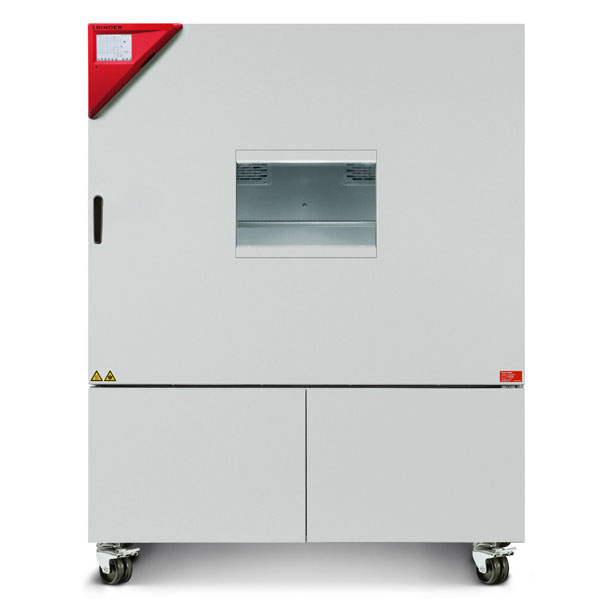

| MKT720 | 25.92 cu.ft |
| MPN | 9020-0387 |
Additional Options & Accessories (For Full List & Part Numbers See Product Downloads)
- Access Ports with Silicone Plug- Available in 30, 50, 80, 100, and 125 mm sizes.
- Securing Elements for Rack Fastening- Set of 4 securing elements for additional fastening of racks
- Door Lock
- RS 422 Interface- Provides advanced communication options for transferring data and integrating with external systems.
- Analogue Output for Temperature (4-20 mA)- Two 6-pin DIN sockets are available for analogue output of actual and set temperature values, supporting external monitoring and integration into broader systems.
- Temperature Safety Device (Class 2)
- Data Logger Kit T 220- For precise temperature recording from -90 °C to 220 °C, this kit includes a data logger, PT 100 sensor, and Teflon extension cable, ideal for continuous monitoring.
- Data Logger converter cable (RS 232 to USB 2.0)
- Data Logger Software- Included software allows you to configure and evaluate your BINDER Data Logger Kit, making it easy to analyse and interpret data from your tests.
- Additional Measuring Channel for Digital Display
- Temperature Measurement According to DIN 12880
- Reinforced Stainless Steel Rack
- Perforated Stainless Steel Shelf
Please contact sales office for quotation
