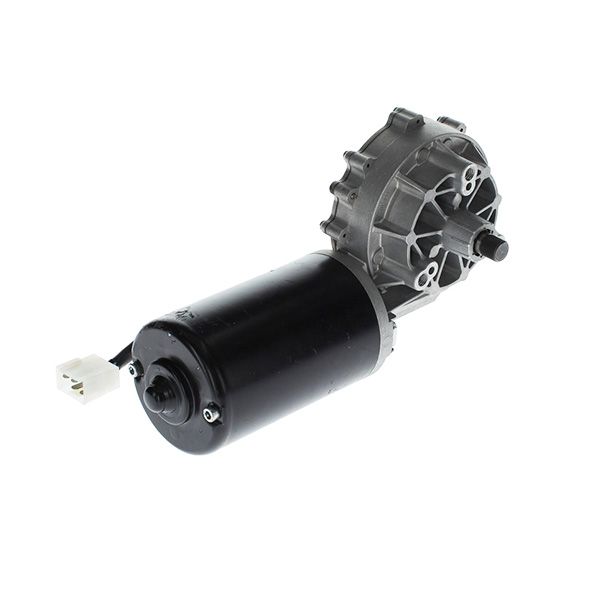

BOSCH EDP EDP
Nominal voltage U N
24 V
Nominal power P N
39 W1 )
Nominal current I N
6 A
Maximum current I max
26 A
Nominal speed n N
40 min-1
Nominal torque M N
10 Nm
Breakaway torque M A
80 Nm
Reduction i
96 : 2
Direction of rotation
Drehrichtung gegen den Uhrzeigersinn
Type of duty
Dauerbetrieb
Degree of protection
IP 23
Weight
5,100 kg
Gear
Yes
Length (unpacked)
310 mm
Width (unpacked)
200 mm
Diameter (unpacked)
177
Connector
Connector type AMP C-180906
Hallsensor
No
