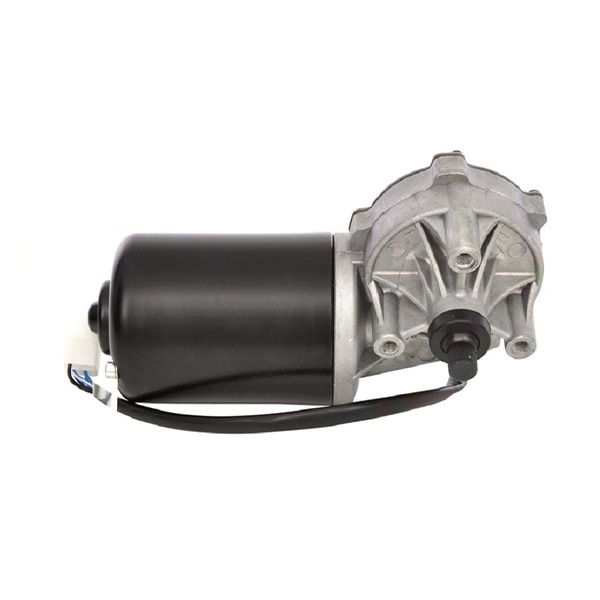

BOSCH EFP 24 V 10/15W
Nominal voltage U N
24 V
Nominal power P N
15 W
Nominal current I N
2 A
Maximum current I max
18 A
Nominal speed n N
52 min-1
Nominal torque M N
3/3 Nm
Breakaway torque M A
55/48 Nm
Reduction i
50 : 1
Direction of rotation
Drehrichtung gegen den Uhrzeigersinn
Type of duty
continuous duty
Degree of protection
IP 23
Weight
2,861 kg
Gear
Yes
Clockwise
1 to (+), 3 to (-)
Anti-clockwise
1 to (-), 3 to (+)
Connector
Housing TE 180904-0 / Terminal TE 160927-2 for 1,5 - 2,5 mm²
Length (unpacked)
270 mm
Width (unpacked)
100 mm
Diameter (unpacked)
44 mm
Hallsensor
No
