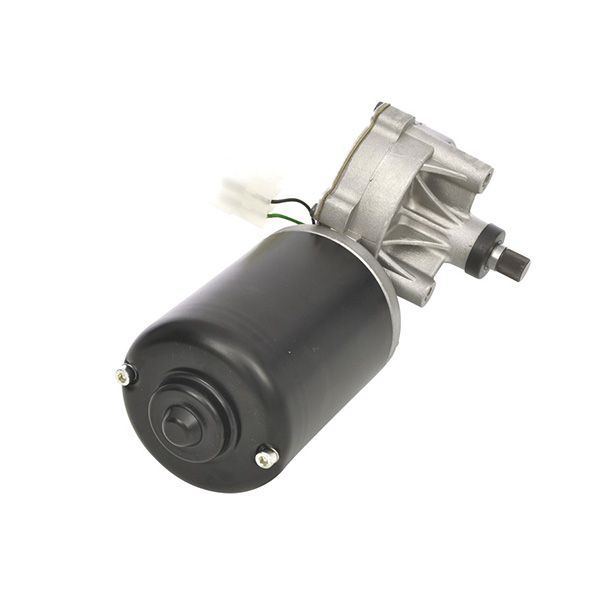

BOSCH EFP EFP
Nominal voltage U N
12 V
Nominal power P N
56 W
Nominal current I N
5 A
Maximum current I max
40 A
Nominal speed n N
39 min-1
Nominal torque M N
10 Nm
Breakaway torque M A
70 Nm
Reduction i
65 : 1
Direction of rotation
Drehrichtung gegen den Uhrzeigersinn
Type of duty
continuous duty
Degree of protection
IP23
Weight
2,767 kg
Gear
Yes
Clockwise
4 to (-), 5 to (+)
Anti-clockwise
5 to (-), 4 to (+)
Connector
Housing TE 180904-0 / Terminal TE 160927-2 for 1,5 - 2,5 mm2
Length (unpacked)
270 mm
Width (unpacked)
100 mm
Diameter (unpacked)
52 mm
Hallsensor
No
