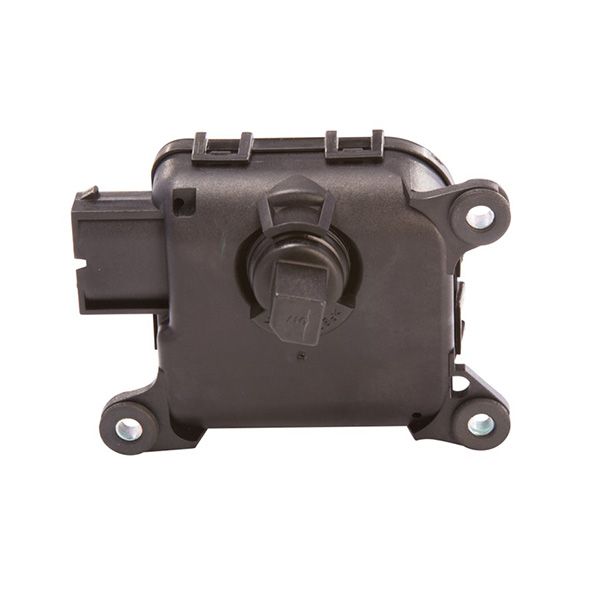

BOSCH VMC 24 V 0,3 W
|
Nominal voltage UN |
24 V |
|
Nominal power PN |
0.3 W |
|
Nominal current IN |
≤ 100 mA |
|
Maximum current Imax |
0.25 mA |
|
Nominal speed nN |
6 min-1 |
|
Nominal torque MN |
0,29 Ncm |
|
Breakaway torque MA |
≥ 90 Ncm |
|
Reduction i |
405 : 1 |
|
Direction of rotation |
Anti-clockwise rotation |
|
Shaft load max. axial Fa |
≤ 30 N |
|
Shaft load max. radial Fr |
≤ 50 N |
|
Type of duty |
short-time duty |
|
Degree of protection |
IP54 |
|
Weight |
0,136 kg |
|
Gear |
Yes |
|
Clockwise |
4 to (+), 6 to (–) |
|
Anti-clockwise |
6 to (+), 4 to (–) |
|
Potentiometer |
Yes |
|
Connector |
Connector Housing: RB- 1 928 403 095/ Connector Terminal: TE 5-962885-1 |
|
Hallsensor |
No |
|
Length |
90 mm |
|
Width |
63.5 mm |
