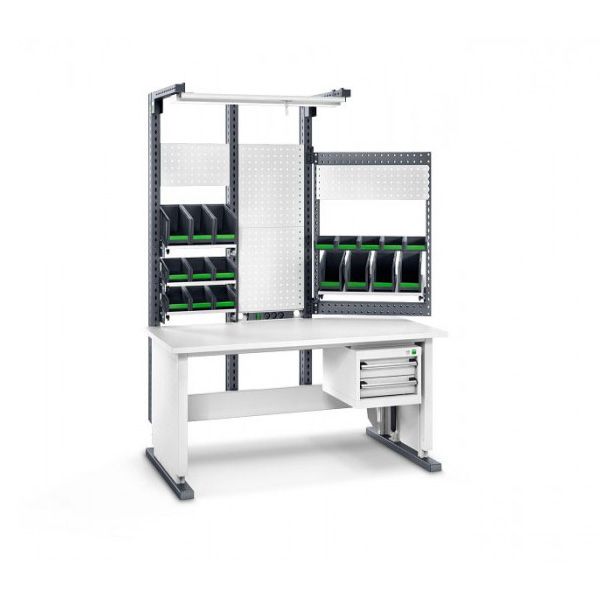

Bott Avero Complete Workstation - Module 1 | 1350mm Width
Bott Avero ESD Workbench - Module 1 | 1350mm Width
Bott's avero benches offer a solution for production areas that is ergonomically optimised, comfortable, efficient and easily adaptable to your environment moving forwards.
Seamlessly connect roller conveyors, docking trolleys and material flow and much more. Speak to our team to craft your Bott Avero bench directly to your needs.
Features
Modularity
The modular design of avero benches combine continuous system structure. Avero can be effortlessly expanded and adapted over time, with all elements adapted to optimise your process, whilst integrating your existing processes seamlessly.
Ergonomics
Avero allows for optimal reacg and easy access to your tools, thanks to swivel frames and adjustable shelving. flexible working heights support your posture and can be simply adjusted. This flexibility promotes comfort and productivity, for fatigue free working.
Process Integration
Avero benches optimise your manual production by creating efficient workspaces and enhancing your process. You can easily integrate tailored automated systemsto improve your efficiency.
Require A More Indepth Discussion On Your Benching Requirements?
For either custom or bespoke benching requirements, please get in touch with us.
For pricing on high volume orders, please contact our team directly or fill in the below form.
Height Adjustment Options

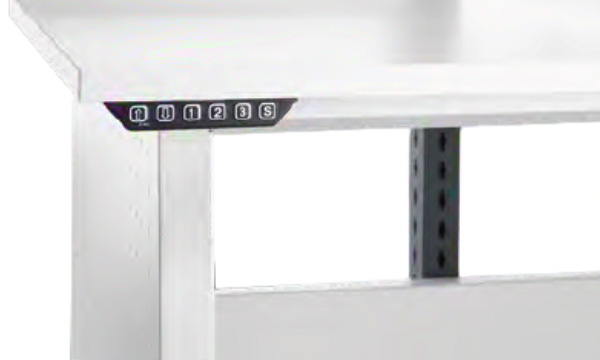

| Electrically Adjustable |
| Mechanical electric motormemory function for 3 work heights |
| Frame height (without worktop) - 713 - 1113mm |
| Load capacity 300kg |
| MPN - 41032004.16 |

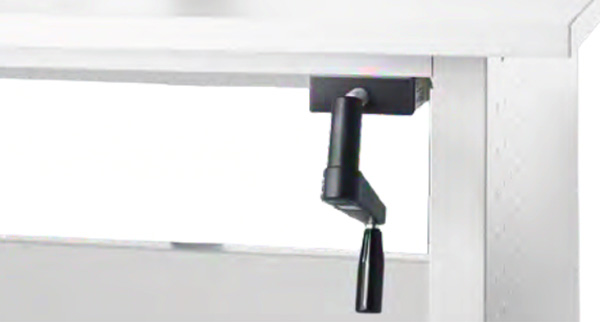

| Hand Crank |
| Hydraulic height adjustment with hand crank |
| Frame height (without worktop) - 713 - 1113mm |
| Load capacity 300kg |
| MPN - 41032008.16 |

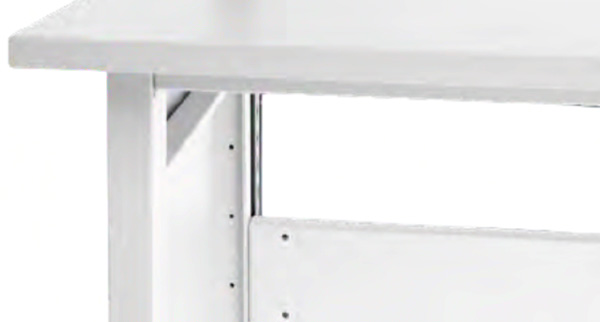

| Manual Adjustment |
| Adjusted manually in incriments of 25mm |
| Frame height (without worktop) - 713 - 1113mm |
| Load capacity 300kg |
| MPN - 41032014.16 |

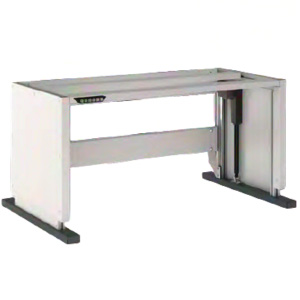

Bott Avero Bench Frame
| Width (mm) | Depth (mm) | Height (mm) |
| 1350 | 870 | 743 - 1143 |
Module 1 Upright Composition
| Contents |
|
3x vertical profile |
|
3x cable duct with brush strips for vertical profile |
|
2x overhead arm for vertical profile |
|
Suspended drawer cabinet 375x500x300 (WxDxH) - with 2x 100mm drawers & lock |
|
Overhead rail with carriage |
|
LED ECO 28W light strip with 5m connecting cable |
|
Retaining rail with 3 gang shuko socket strip, On/Off switch and 3m connection cable |
|
2x perfo perforated panel, height 480mm high, for system width 450mm |
|
Tray, 350mm depth, for system width 450mm, kitted with 3 bottBoxes M3 |
|
2x tray, 200mm depth, for system width 450mm, kitted with 3 bottboxes M2 |
|
Swivel frame, system width 750mm |
|
perfo perforated panel for swivel frame |
|
Tray, 350mm depth, for swivel frame 450mm, kitted with 4 bottBoxes M3 |
|
Bin rail for swivel frame, kitted with 5 bottBoxes M3 |
|
Laminate-coated worktop |
|
Table load 200kg |
