JBC CF-2D Solder Feed Station

This product has been discontinued
£439.24 (Exc.VAT)

JBC CF Solder Feed station

Zoom Out
Zoom In

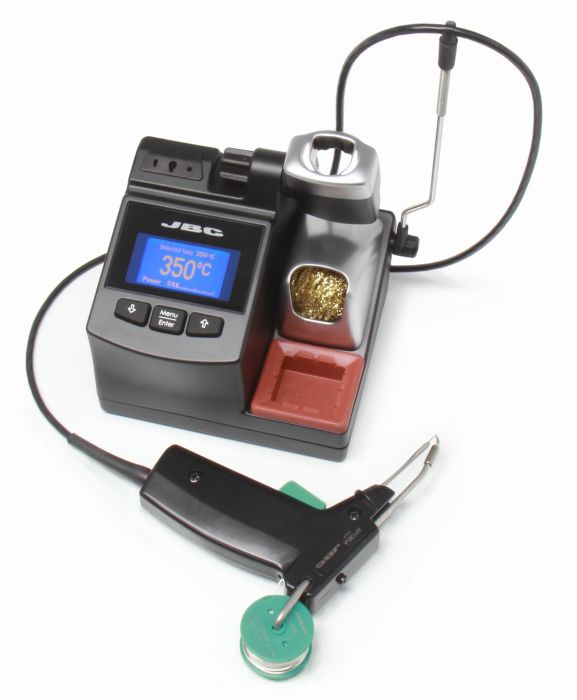

JBC CF-2D 230V Self-Contained Soldering station for successful hand soldering


The JBC CF-2D is perfect for intensive soldering jobs which require you have a free hand.


Product Information:



  • It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

  • Using the menu you can personalize over 20 parameters to help manage the soldering process.

  • It incorporates a USB connector (type B) to update station software and create graphs.

  • CF works with the comfortable AP130 solder feed iron and C130 cartridges.


JBC Compact Line Range


Using the JBC exclusive heating system, compact stations suit your soldering and desoldering needs in the minimum footprint.


Kaisertech are specialists in electronic manufacturing and stockists of JBC products, including soldering stations, tips, stands, handpieces, extraction kits, rework stations, control units and fume extraction kits.

View FileCF_2B_MANUAL.pdf    Size: (1.76 MB)
View FileJBC Compact Line    Size: (1.19 MB)

General Specifications

Weight 2.8 kg (6.2 lb)
Size 150x175x145 mm
Voltage(AC) 230V / 120V / 100V
Input Fuse 1A (230V), 2A (120V and 100V)
Output Peak Power 130W / 23.5V
Temperature selection 90-450 ºC / 190-840 ºF
Tip to ground resistance <2 ohms
Tip to ground voltage <2mV RMS
Ambient operating temp. 10-40 ºC / 50-104 ºF
ESD Safe
Diameter of Solder Wire 0.8-1 mm (0.03-0.04 in)
USB interface station-PC
Package weight 3.3 kg (7.3 lb)
Package dimensions 235x235x260 mm
