Discontinued
JBC CP-2D Micro Tweezers Soldering station

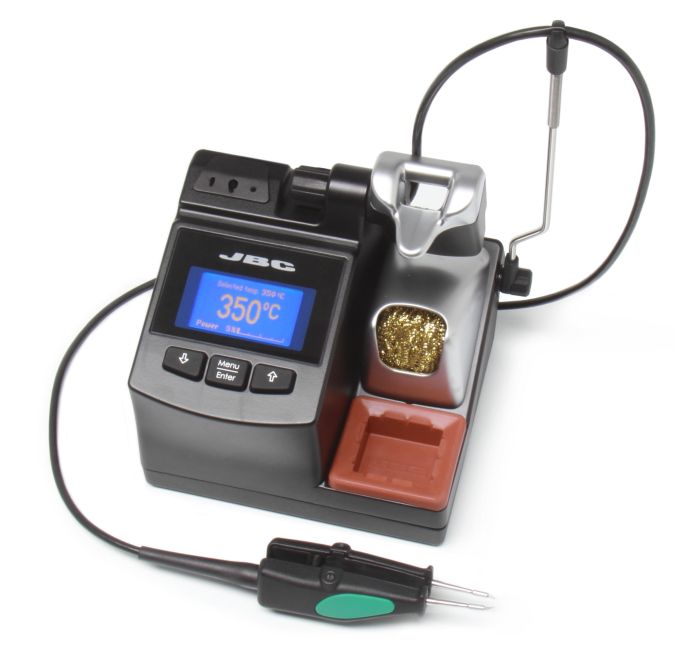

JBC CP-2D 230V Micro Tweezer Soldering station
The JBC CP-2D is a soldering and desoldering station for small and medium SMD components.
Product Information:
- It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
- Using the menu you can personalize over 20 parameters to help manage the soldering process.
- It features a USB connector to update software, create graphs and manage parameters from a PC.
- CP works with the lightest and ergonomic PA120 microtweezers and the C120 cartridges.
Intelligent heat management
The only time a soldering iron must reach its required temperature level is during a soldering operation.
JBC’s intelligent heat management detects how the tools are used; accordingly the integrated support function activates the sleep or hibernation mode.
The intelligent heat management helps to extend tip life by lowering temperature; it also helps to save energy by reducing power usage to 10W in sleep mode and 4W in hibernation mode.
Help us to protect the environment and to save energy!
JBC Compact Line Range
Using the JBC exclusive heating system, Compact stations suit your soldering and desoldering needs in the minimum footprint.
Kaisertech are specialists in electronic manufacturing and stockists of JBC products, including soldering stations, tips, stands, handpieces, extraction kits, rework stations, control units and fume extraction kits.
![]() |
|
![]() |
General Specifications
Weight | 2.7 kg (6 lb) |
Size | 150x175x145 mm |
Voltage(AC) | 230V / 120V / 100V |
Input Fuse | 1A (230V), 2A (120V and 100V) |
Output Peak Power | 80W / 23.5V |
Temperature selection | 90-450 ºC / 190-840 ºF |
Tip to ground resistance | <2 ohms |
Tip to ground voltage | <2mV RMS |
Ambient operating temp. | 10-40 ºC / 50-104 ºF |
ESD Safe | |
USB station-PC | |
Package weight | 3.1 kg (6.8 lb) |
Package dimensions | 235x235x260 mm |
