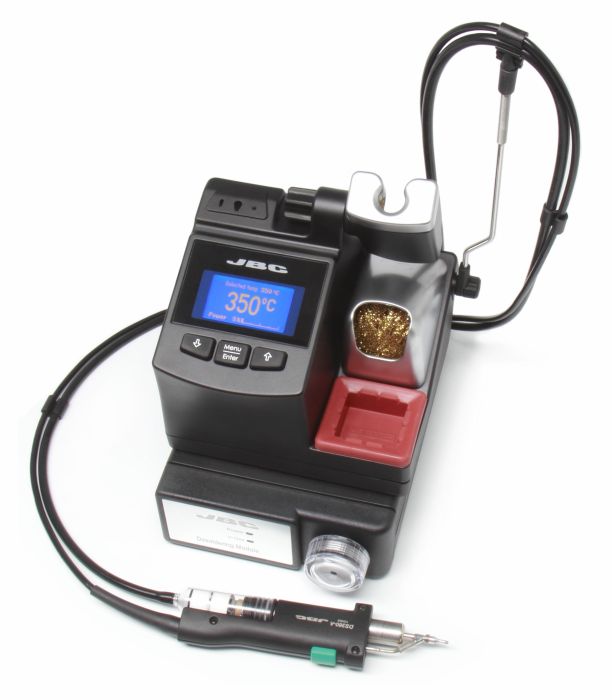

JBC CS-2D Micro Desoldering Station with Electric Suction Pump

JBC CS Desoldering station with Electric Pump

Zoom Out
Zoom In

CS is a desoldering station with an electric pump and JBC Advanced system for precision electronic applications.

It works with the JBC exclusive heating systemand the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

CS is equipped with the MS-A electric pump and works with the comfortable DS360 Micro desoldering Iron and C360 cartridges.
View FileJBC Compact Line    Size: (1.19 MB)
View FileKaisertech Product Guide v.2.o    Size: (5.76 MB)

General Specifications

Weight 2.8 kg (6.2 lb) (station)
Size 150 x 175 x 145 mm (station)
Voltage (AC) 230V / 120V / 100V
Input Fuse 1A (230V), 2A (120V and 100V)
Output Peak Power 40W / 23.5V
Temperature selection 180-450 ºC / 356-840 ºF
Ambient operating temp. 10-40 ºC / 50-104 ºF
Tip to ground resistance <2 ohms
Vacuum 75% / 570 mmHg / 22.4 inHg
Flow rate 9 SLPM
USB connector station-PC
ESD Safe
Package weight 5.1 kg (11.3 lb)
Package dimensions 330 x 260 x 305 mm
