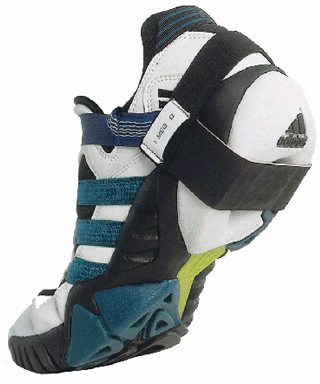

ESD Anti Static Heel Grounder 1 Meg with dayglow strap - each

£2.00 (exc VAT) (£2.40 inc VAT)

ESD Anti Static Heel Grounder 1 Meg with dayglow strap - each

Zoom Out
Zoom In

Product Information:

  • ESD Anti Static Heel grounder to fit all standard shoes
  • Premium incorporates sewn side joints
  • Elasticated back to ensure snug fit to any shoe
  • Conductive rubber for grounding to flooring
  • Non marking inner prevents marking shoes
  • Comfortable elasticated stretch spandex over the foot velcro fastening
  • Knitted ribbon tabs with silver coated monofiliments
  • Incorporates 1 Meg Ohm resistor
  • Resistance to ground 105-107 Ohm
  • Conforms to IEC 61340-5-1

Constructed using 2 pieces of two layered rubber sheet, insulative white and conductive black, forming heel cup, assembled to a plastic connector with built in 1 meg resistor joined in serried with conductive tape.

View FileAnti Static Heel Grounder Specification Sheet    Size: (217.89 KB)

General Specifications

Electrical Properties

Conductivity:

Black rubber surface: 8 x 104 ohms

White rubber surface: 1 x 1012 ohms

Metal Film resistorL 1 meg ohm + 20%

Dimensions

Cutting length- rubber – 137 + 2mm rubber width – 25 + 1mm

Cutting length – garter – 80 + 2mm – garter width 19 – 20mm

Cutting length – tab -600 + 2mm – loop tape- 157 + 2mm

Hook and loop width – 19-20mm

Hardware All metal parts show no evidence of corrosion and rust after 24 hours submersion to salt solution. Preferably made from stainless steel or brass alloy plated nickel.

Plastic Parts Made of antistatic nylon material

Standards

  • EOS/ESD-S1
  • ANSI/ESD S1.1-1998
  • MIL-STD-202 Method 101
  • DOD Handbook 263
  • DOD Standard 1686
  • ESD-STM12.1-1997
  • CECC-00015
  • ESD-STM 12.1-1997
  • ESD DS12.1-1995
  • ESD SP9.2-2003
