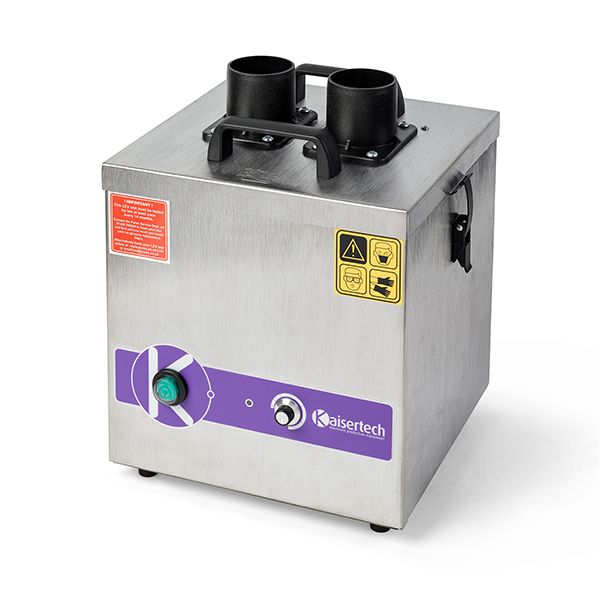

The Purex FumeCube is a compact fume extraction system that provides a highly efficient and sustainable choice for your work environment.

With the choice of the FumeCube Single Arm and FumeCube Dual Arm, there is greater flexibility in allowing you to choose the setup that best fits your workplace requirements.

The machine also provides an LED Varicoloured filter status, by using a traffic light system that informs the operators of the status of the filters.

Key Features

• Includes 2 x Purex Stainless Steel Flexible Arm 38mm
• Automatic electronic flow control - maintains a constant extraction rate even as the filter blocks
• Easy to relocate when work area changes
• Simple to install and quiet in operation
• Supplied with one 38mm stainless steel arm with pen nib nozzle and conical cowl, which can be simply attached to the workbench by using a versatile clamp bracket.
• Speed control (adjustable airflow)
• VariColour filter blocked warning system
• Low capital and running costs
• Quick change patented Labyrinth pre-filter delivers longer filter life
• Submicronic (HEPA Filter) filtration removes 99.997% of particles down to 0.3 microns
• Activated Carbon Filters removes harmful gas
• Optional interfacing option


Machine Supplied With

• 1x main filter
• 1x pre-filter
• 1x connection kit
• 1x power cable
• 1x manual

How Does It Work?

Key:

• 1) Air inlet - 57mm ID - 62mm OD
• 2) Pre-filter
• 3) Main Filter (HEPA location)
• 4) Main Filter (Carbon location)
• 5) Clean air returned to workplace
• 7) Filter identification label

Filters Included With The FumeCube Single Arm:

Main Filter Code

110536

Filter Type

HEPA/Chemical

View / Buy Here

Pre-Filter Code

200036

Filter Type

F5 Pad

View / Buy Here

Other Compatible Purex Filters With The FumeCube Single Arm:

Supplied Connection Kit (100295)

• 1x 2m x 50mm flexible hose
• 2x connecting cuffs
• 1x 38mm stainless steel flexible arm with valve
• 1x 95mm conical cowl
• 1x 38mm pen nib
• 1x clamped bench bracket

Connection Kit Options
