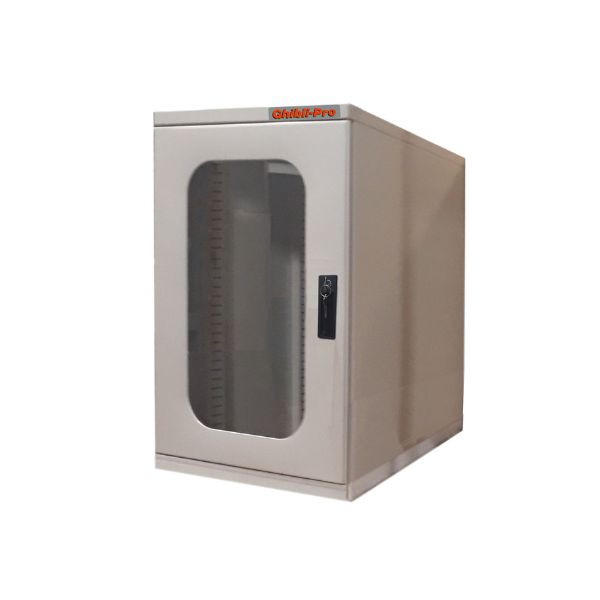

Ghibli-Pro Dry Storage Cabinet 338L
Ghibli-Pro Dry Storage Cabinet 338L
Moisture Sensitive Devices (MSDs), must be stored in a correct manner, if any are damaged this can cause a negative impact on the entire production batch.
Electronic components (like QFP, BGA or SOIC for example), LEDs and Printed Circuit Boards, when extracted from their original protective package, absorb humidity from the environment and during the soldering process the trapped moisture can vaporise and exert internal package stress.
Ghibli-II dry cabinets provide a safe place to temporary stock the MSDs removed from their original Dry Pack before the soldering process.
With the portable instrument DryLogger and the Software LogManager supplied with every cabinet, you can calculate the time intervals and percentage that exceed the 10%RH or 5%RH which leads to the estimation of floor life.
Key Features:
- Easy use - Just connect it to main supply without settings and it will be stable at less than 5%RH (5%RH is guaranteed but the cabinet can easily reach 2%RH)
- Easy calibration - Inside every cabinet there is a portable hygrometer visable through the glass of the upper door
- Modular design - The dehumidifier modules are easily extractable with only a screwdriver. This allows easy reparation and grant the long life of the cabinet (over 20 years)
- Two years warranty

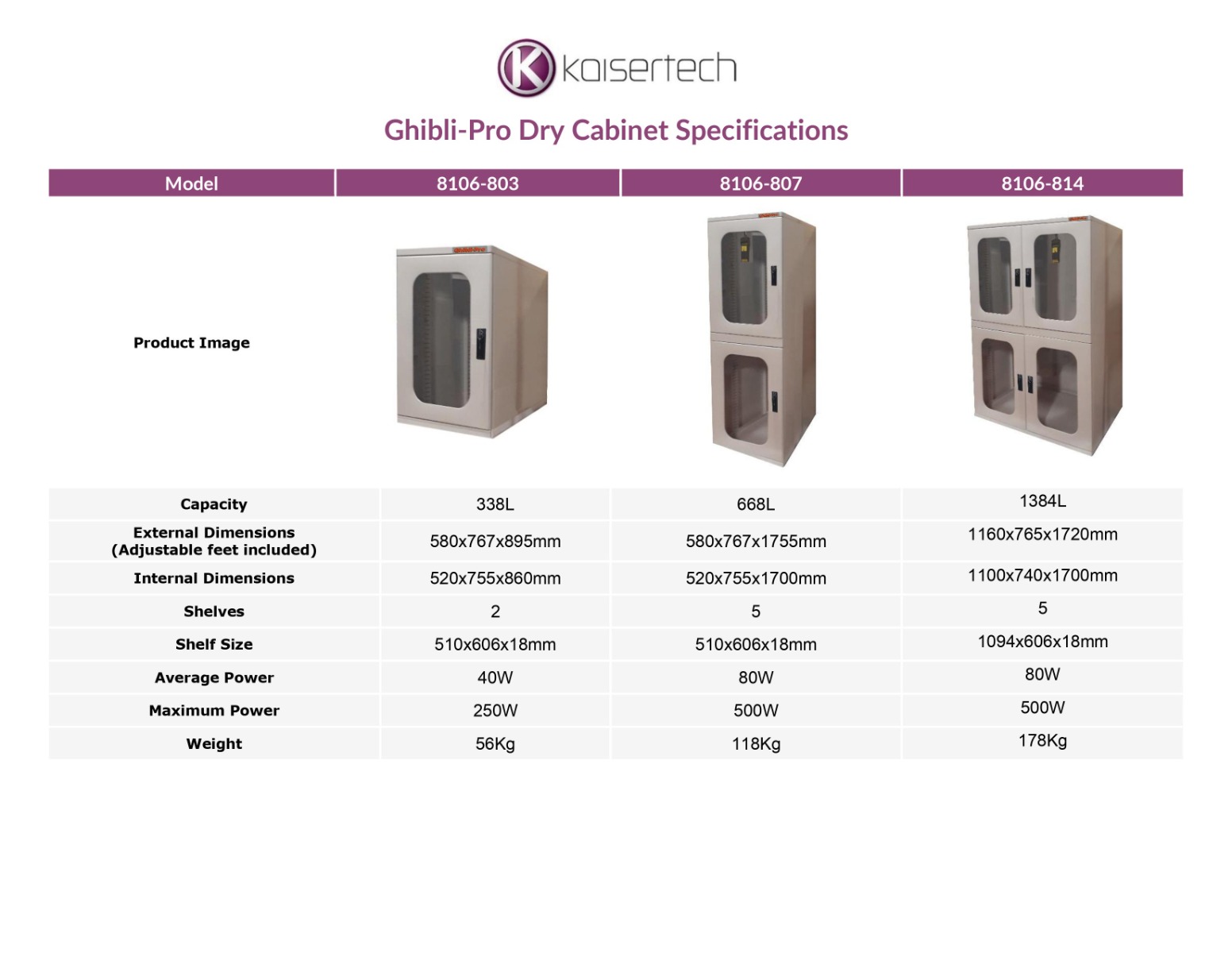

Key Specifications:
Power -
Ave. 40W
Max. 250W
Weight -
56kg
Capacity -
338L
Number of Shelves -
2
