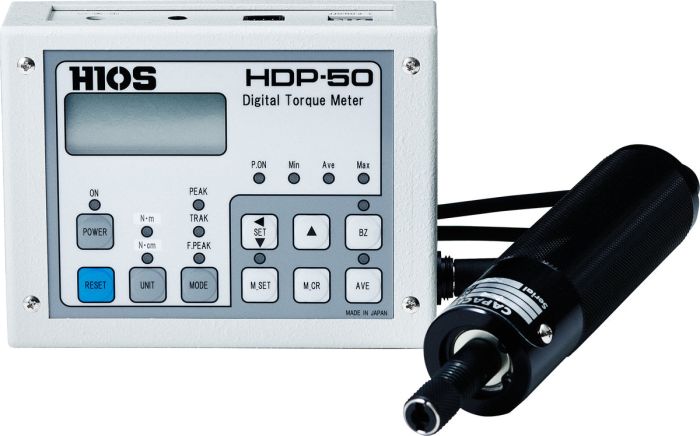

Hios HDP-50

Use for measuring loosened torque of tightened screws or additional tightening torque.

● Measured data can be imported to a computer.
● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).
● New product, HP-1 is ideal for measuring 10N・cm or smaller torque.
● Torque for both clockwise or counterclockwise can be measured.
● As a standard specificataon, data output and analogue output are available.
● We offer calibration and maintenance services.
● “Inspection Report” is attached to all the Torque Meters.

More Information
General Specifications
Peak measuring range ibf.in 1.5-44
  N.m 0.15-5
Accuracy within ±0.5% (F.S.)
Measuring models track, peak, first peak
External dimensions(mm) 125x95.6x42(H)
Weight(g) 0.78KG
Detector H5 OR 1/4 HEX
Detectorcord 1.7m(P/N: DPC-0506)
Charging time 1.2v NiMH x 5 cells 1,000mA (within 6 hours)
Continious operating time from full charge 8 hours
Battery life About 300 charges
Exclusive battery charger input - AC 100-240V
  Output - DC 7.3-8V 0.5 A
