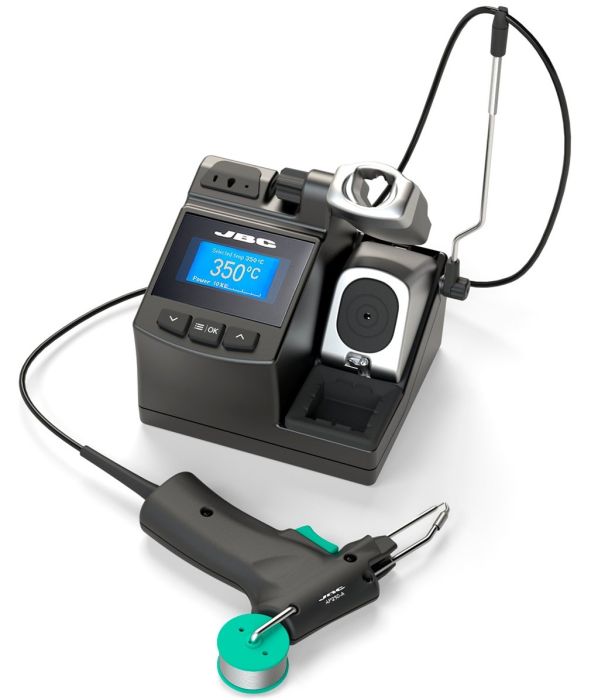

JBC CA-2E Solder Feed Station

£465.00 (exc VAT) (£558.00 inc VAT)

JBC CA-2E Solder Feed Station

Zoom Out
Zoom In

The CA is a soldering station for intensive jobs which require you have a free hand.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

Complete cleaning system with an antisplash membrane to keep the work area clean.

Use the integrated wiper to remove excess solder from the tip. CA works with the comfortable AP250-A and C250 cartridges.

View FileKaisertech Product Guide v.2.o    Size: (5.76 MB)

General Specifications

Weight 2.861 kg (6.30 lb) Size 150x175x145 mm Voltage(AC) 230V / 120V / 100V Input Fuse 1A (230V), 2A (120V and 100V) Output Peak Power 130W / 23.5V Temperature selection 90-450 ºC / 190-840 ºF Tip to ground resistance <2 ohms Tip to ground voltage <2mV RMS Ambient operating temp. 10-40 ºC / 50-104 ºF ESD Safe Diameter of Solder Wire 0.8-1 mm (0.03-0.04 in) USB interface station-PC Package weight 3.280 kg (7.23 lb) Package dimensions 234 x 234 x 258 mm
