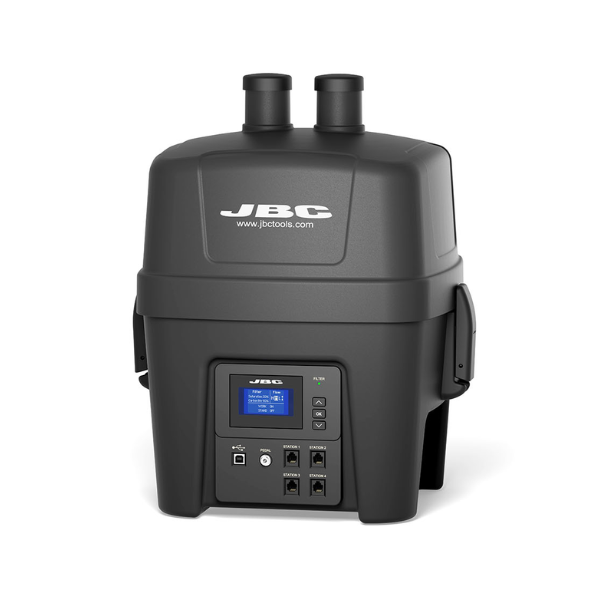

JBC FAE1P Fume Extractor With FAE1200 for 1 Workbench

Does Not Include Flexible Arms (FAE070/FAE020) or Hoses (FAE010) - See Below

FAE1P is the best solution to avoid exposure to solder fumes where extremely high air purification is required. FAE1P only operates when the operator is soldering and features a unique intergrated vacuum system.

It consists of FAE1110 Pre-Filter and FAE1200 Filter (HEPA H14 + Carbon) the most efficient in particle retention. This three-layered system achieves a certified efficiency of 99.995% in filtering soldering fumes, meeting EN 1822 standards.

Key Features

• FAE1P can be controlled via JBC Stations, a pedal, a robotic system or a PC.
• FAE1P provides direct connection of up to 4 soldering or rework stations with a total of 4 tools.
• It has 3 predefined levels of aspiration: low, medium and high. It also features a custom mode where the airflow can be set within the minimum (10%) and maximum rates (100%).

For A Basic Working System:

1 or 2 x Flexible Arms Ø50 - FAE070 / FAE020

1 or 2 x Flexible Hoses Ø50 - FAE010

Additional Extras

1 x Accessory For Stand Aspiration - FAE030 / FAE040

1 x Stand Aspiration Ducts (1 per tool, 4 per unit) - FAE050 / FAE060

Key Features:

• Provides connection of up to 4 soldering or rework stations.
• Has 3 predefined levels of aspiration; low, medium and high.
• Detects when tool is at rest and automatically absorbs the fumes.

Watch the FAE1 Fume Extractor in action here.

Product Composition

1 x FAE1P Fume Extractor

1 x FAE1200 Filter

1 x RJ12 Connection Cable

1 x Power Cable

1 x USB Connection Cable

1 x Station Connection
