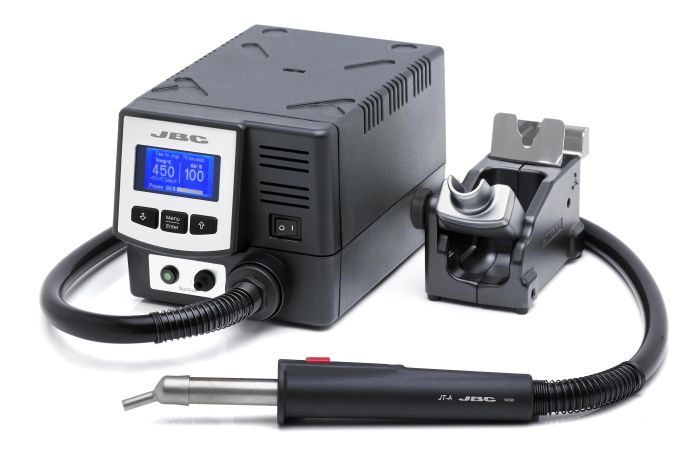

JBC JT-2QD Hot Air Station High Power Without Extractor Desk

This is a high powered hot air station to repair all types of SMD quickly and safely, even the biggest QFPs and PLCCs.

The unit features two work modes - manual or program - to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters, including the activation mode of the tool: automatic, by button or by P-005 Pedal.

It works with the JT-TA heater and features USB-B connector for software updates.

It comes with the JT-SD Stand that guarantees the Auto-stop function when the tool is at rest.

More Information
General Specifications
  • Weight 3.9 kg (8.5 lb)
  • Dimensions (Control Unit) 148 x 184 x 140
  • Voltage (AC) 230V / 120V / 100V
  • Input Fuse 4A (230V), 8A (120V and 100V)
  • Nominal Power 700 W
  • Temperature selection Room Temperature / 150-450 ºC (300-840 ºF)
  • Cool mode: temp. Off
  • Ambient operating temp. 10-40 ºC (50-104 ºF)
  • Air Flow Regulation 10 - 50 SLPM
  • Vacuum 30% / 228 mmHg / 9 inHg
  • Rated Current 3A(230V), 6A(120V), 7A(100V)
  • Communication connectors USB-B
  • Pedal connection P-005 Pedal
  • ESD Safe
  • Package weight 6.3 kg (13.9 lb)
  • Package dimensions 475 x 370 x 200 mm
