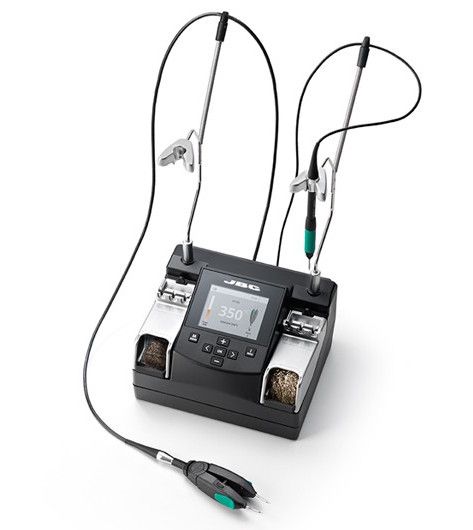

JBC NASE-2B Nano Rework station

JBC NASE-2B Nano Rework station

Zoom Out
Zoom In

The best solution for repairing very small-sized components requiring the highest precision such as chips 0402, 0201, 01005, etc.

It works simultaneously with the NT105 Nano Handpiece and the NP105 Steady Nano Tweezers.

The short distance from the tip to the handle offers maximum control even when using a microscope.

It works with the JBC exclusive heating systemand the intelligent sleep & hibernation modes.

It features all the Excellence range benefits and an easy-to-use menu which helps you monitor the work in real time: graphics, partial counters, tool port monitoring, etc.

Cartridges included:

  • C105-101 x1
  • C105-103 x1
  • C105-105 x2
  • C105-107 x1
  • C105-112 x1
  • C105-113 x2
View FileJBC NASE-2B    Size: (2.6 MB)
View FileKaisertech Product Guide v.2.o    Size: (5.76 MB)

General Specifications

Weight 2.8 kg (6.2 lb)
Size 150x175x145 mm
Voltage(AC) 230V / 120V / 100V
Input Fuse 1A (230V), 2A (120V and 100V)
Output Peak Power 130W / 23.5V
Temperature selection 90-450 ºC / 190-840 ºF
Tip to ground resistance <2 ohms
Tip to ground voltage <2mV RMS
Ambient operating temp. 10-40 ºC / 50-104 ºF
ESD Safe
Diameter of Solder Wire 0.8-1 mm (0.03-0.04 in)
USB interface station-PC
Package weight 3.3 kg (7.3 lb)
Package dimensions 235x235x260 mm
Removing 0201
“I had a job come in where i needed to remove a large qty of 0201 components - the nano tweezers made the job much easier than before. Would highly recommend.”
(Posted on 24/03/2017)
