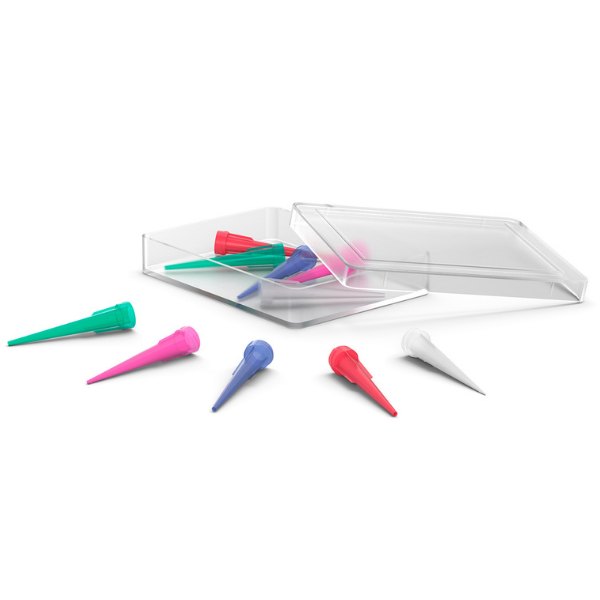

JBC ND-KP Dispenser Tapered Tips Set of 10x for DPM
JBC ND-KP Dispenser Tapered Tips Set of 10x for DPM
Set of 10 Tapered Tips consisting of several dispenser tapered tips, with different gauge recommended for solder paste Type 2, 3, 4 and 5.
Perfect for use with either the DPM-A or DPM-B solder dispenser from JBC.
ND18S6 18G Green Type 2
Total Length: 32 mm (1.26in)
Inner Diameter: Gauge 18 0.84mm/ 0.333in
ND20S6 20G Fushia Type 3
Total Length: 32mm/ (1.26in)
Inner Diameter: Gauge 20 0.61mm/ 0.024 in
ND22S6 22G Blue Type 3
Total Length: 32mm/ (1.26in)
Inner Diameter: Gauge 22 0.41mm/ 0.016 in
ND25S6 25G Red Type 4
Total Length: 32mm/ (1.26in)
Inner Diameter: Gauge 25 0.25 mm/0.010in
ND27S6 27G White Type 5
Total Length: 32mm/ 1.26in
Inner Diameter: Gauge 27 0.20mm/ 0.008 in
Compatible With The DPM Manual Solder Paste Dispenser.
PRODUCT COMPOSITION
2x ND18P 18G Tapered Dispenser Tip
2x ND20P 20G Tapered Dispenser Tip
2x ND22P 22G Tapered Dispenser Tip
2x ND25G 25G Tapered Dispenser Tip
2x ND27P 27G Tapered Dispenser Ti
