Find premium quality JEDEC IC Trays, catering for BGA square components.
Each tray is standardised to protect and handle BGA components through manufacturing, storage, transit and testing.
As the UKs official distributor of TopLine products, we can provide from a range of a thousand different JEDEC trays and Waffle packs, from small to large quantities.
All trays are made from ESD safe molding compounds, for strong protection of its contents.
Key Features OF JEDEC Trays
JEDEC Standard Footprint - Each tray follows the established JEDEC matrix outline (322.6mm x 136mm). This ensures seamless compatibility with handling equipment, feeder systems and pick & place machines
Secure BGA-specific Pocket Design - Each pocket is designed to the specific BGA design, securely cradling the component without contacting or damaging delicate solder balls.This fully protects the components during handling and transit.

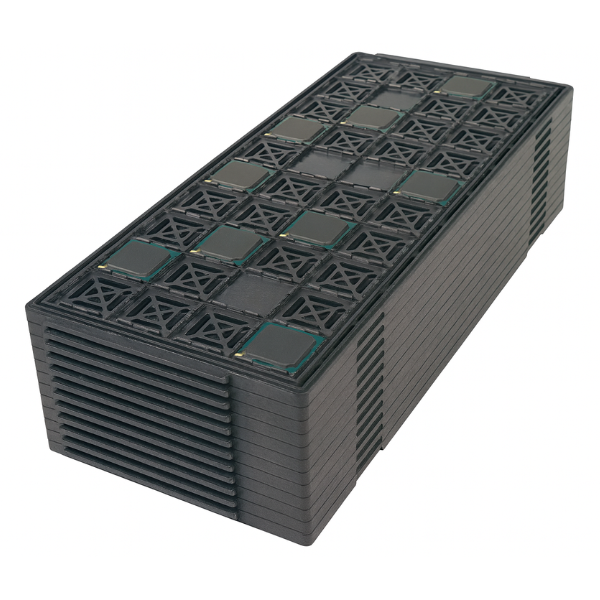

Stackable & Space-efficient - Easy to interlock and stack, providing convenience for storage and handling.
ESD & Process Ready - Manufactured from a durable ESD polymer, safeguarding electrostatic-sensitive ICs whilst supporting SMT production processes.
Versatile For Multiple BGA Types - These trays can be designed to fit your requirements, no matter the size of your square BGA. Simply let us know the size and number of components your require to be stored. This makes these trays a versatile choice for mixed production environments.
Durable & Reusable - TopLine JEDEC trays are built for repeated use in shipping, production lines, storage and rework processes. This aids in reducing waste and long-term procurement costs for packaging.
Applications For Use Of JEDEC Trays
- SMT / PCB assembly lines - Pick and place, reflow, inspection
- Component testing and handling
- Storage and warehousing of IC components
- Shipping and distribution of both BGA and SMD
- Rework and re-use cycles in manufacturing
BGA Square Small 5~9mm
BGA Square Medium 10~16mm
BGA Square Mid-Size 17~37.5mm
BGA Square Large 40~61mm

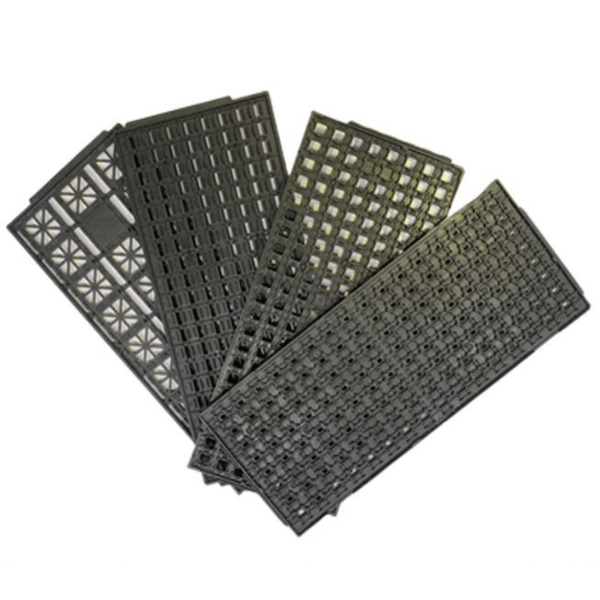

How To Order BGA JEDEC Trays Through Kaisertech
We have a strong partnership with TopLine, being able to supply all of their product range into the UK.
Have a look at the variety of options from the buttons above, and find the size of your BGA Square components, along with the number of components per tray.
Then submit a request through our form at the bottom of this page to send your requirements through to us.
Our team will get back in touch with a quote for the variations and volumes that you require.
