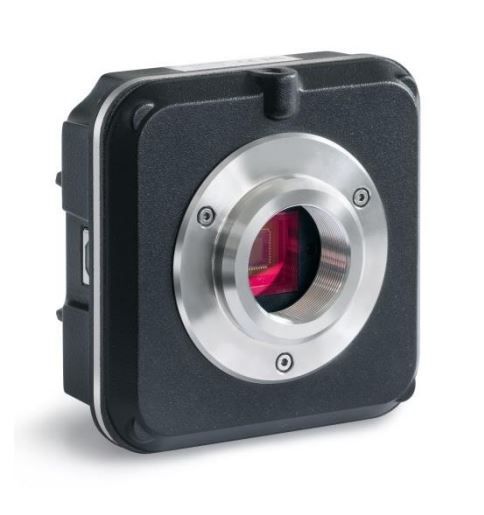

KERN Microscope Camera – ODC 825/832

C-mount cameras from KERN - the perfect solution for measuring, documenting & image processing your PCB micro soldering works. These cameras can be used anywhere, with the ability to connect them to KERN microscopes, laptops, or PCs through the use of the USB cable.

With this camera there are 2 variations- the ODC 825 which uses USB 2.0, or the ODC 832 which uses USB 3.0. Power is supplied to the unit through the included USB cable, so no additional power cables are needed.

By using these cameras, you can make your daily work significantly easier, thanks to the synchronisation, high frame rate and stable image performance. It comes with the specialist software “VIS KERN OXM 901”.

The ODC 825 & ODC 832 series can be attached to all microscopes that offer the appropriate and corresponding C-mount adapter.

*Ensure that you own or request the appropriate C-mount adapter that fits your microscope upon purchase

Features Of KERN ODC Microscope Cameras:

• High frame rate and stable image performance.
• No additional cables needed, with the power supplied to the camera through the USB cable.
• Images displayed quickly and clearly thanks to the CMOS technology.
• Possible to attach to all microscopes on the market, with the appropriate C-mount adaptor.
• Delivered with the camera includes the multilingual KERN software, corresponding USB cable, various eyepiece adaptors and an object micrometer (for software calibration).

Applications:

Specialist equipment for measuring, counting, documenting, archiving or image processing.

Versions:

• ODC 825 – 5.1MP USB 2.0
• ODC 832 – 5.1MP USB 3.0

Standard Inclusions:

	Integrated USB 2.0 Digital Camera For Direct Transfer Of Image To PC (ODC 825)
	Integrated USB 3.0 Digital Camera For Direct Transfer Of Image To PC (ODC 832)
	PC Software – For Transferring The Measurement Data From The Device To A PC
