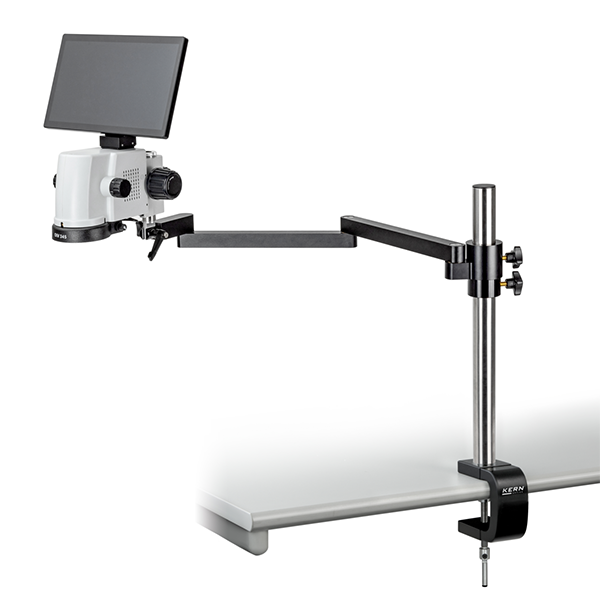

KERN OIV 901/902 Articulated-Arm Video Microscope
More Information
MPN
OIV 901 / OIV 902
General Specifications
Optical system Axial
Tube type Display
Magnification ratio 6,4:1
Click - Stop - Zoom Yes
Zoom Min 0.7x
Zoom Max 4.5x
Illuminance Reflected light
Illumination intensity incident light 3W
Illumination type incident light LED
Focusing mechanism Coarse drive
Display type LCD
Display screen size 11.6"
Display resolution 1920x1080 HD
Camera - Sensor type CMOS
Camera - Sensor size 1/2,8"
Camera - Resolution 5 MP
Camera - Framerate 60 fps
Interfaces USB 2.0, HDMI, MicroSD
Working distance 100 mm
Stand type 901 - Universal (jointed arm with clamp)
Dimension (WxDxH) 320x260x450 mm
System requirements CPU Intel Core i3 or higher, AMD Ryzen 5 or higher
System requirements RAM 8 GB
System requirements SSD storage 128 GB SSD
System requirements graphics card NVIDEA GeForce RTX 3060, AMD Radeon RX 6600
System requirements screen 20.5" Full HD, 1920x1082
System requirements clock speeds 2.8 GHz
Warranty time 36 months
