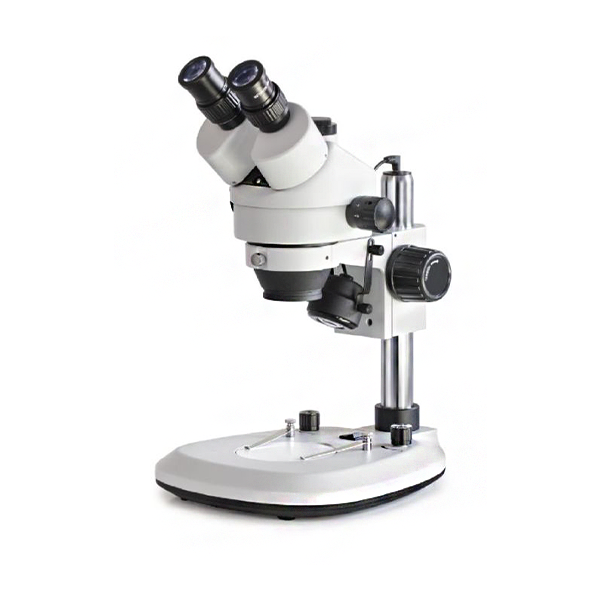

KERN OZL-46 Stereo Microscope Series

KERN OZL-46 Stereo Microscope Series

Both affordable and flexible, the OZL046 series of stereo microscopes from KERN are ideal for micro soldering, laboratories, training facilities, quality control and inspection work. It really is the all-round stereo microscope that will satisfy your magnification requirements.

The series comes with extra-wide field eyepieces, giving greater vision angles (perfect for those of us that wear glasses!). You can also control the reflected and transmitted light separately to one another!

Once you use the OZL-46 series from KERN, you will be mightily impressed by their quality, ease of use, flexibility, and stability. All of this for a fair and competitive price on a microscope capable of such performance.

Thanks to the pillar stand, you have the highest degree of flexibility, along with the freedom to remove the head of the microscope & integrate it to other modular systems, such as an articulated arm or universal stand.



Features Of The OZL-46 Series:

  • Offer the highest blend of performance and comfort available, with a large working surface.
  • Zoom objectives that offer continuous magnification from 7x – 45x.
  • Available as either binocular (OZL-463/465) or trinocular (OZL-464/466).
  • Capable of connecting to a camera to trinocular versions through a C-mount adaptor.
  • Includes a protective dust cover, eye cups & user instructions (multiple language variations on request).
  • Compatible with a large range of objectives, external lighting units and other auxiliary accessories from KERN.



Applications:

The KERN OZL-46 series is perfect for samples with depth and thickness, making it ideal for quality control or other works on a printed circuit board. The 42 series is also ideal for working with components.



Standard Inclusions:

360 degrees 360 Degree Rotatable Microscope Head
Binoculars Binocular Microscope - Inspection With Both Eyes
Trinocular Trinocular Microscope - Inspection With Both Eyes & The Option Of A Camera
LED Illuminations LED Illumination - Cold, Energy Saving, Especially With Long-Life Illumination
Incident Illumination Incident Illumination - For Non-Transparent Objects
Transmitting Illumination Transmitting Illumination - For Transparent Objects
Zoom Magnification Zoom Magnification - For Stereo Microscopes
3 Year Warranty 3 Year Warranty



Versions:

OZL 463 (Binocular)

OZL 464 (Trinocular)

OZL 465 (Binocular – With Ring Illumination)

OZL 466 (Trinocular – With Ring Illumination)

More Information
General Specifications
Optical System Greenough Optics
Tube 45° Incline
Interpupillary Distance 55-75mm
Dioptre Adjustment Both Sided
Overall Dimensions 300 x 240 x 420mm
Net Weight 4kg (Approx)
Objective Zoom 0.7x - 4.5x
Stand Pillar
Eyepiece HWF 10x Ø 20.0mm
Field Of View Ø 20.0 (OZL 465/466) - Ø 28.6mm - 4.4mm
Illumination 3W LED (transmitted), 3W LED (incident)
Working Distance Standard 105mm (Check Product Brochure)
