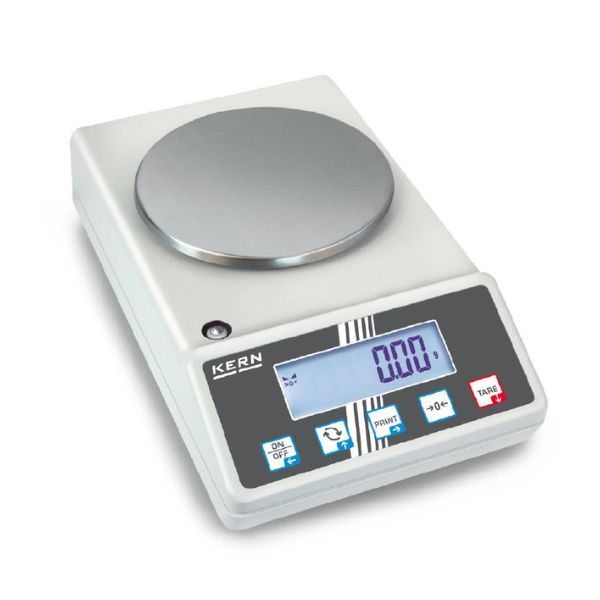

KERN Precision Balance Scales | 572
KERN Precision Balance Scales | 572
Robust scales suitable to be used in the laboratory or in harsh industrial applications, ideal for the diverse possibilities of Industry 4.0 applications.
Features many typical indutrial functions, such as piece-counting, recipe function, percentage determination, combined with the high level of precision.
Ring-shaped draft shield standard for models with weighing plate 106mm, weighing ØxH 157x43mm.
Protective working cover included with delivery.
Overall Dimensions (without draught shield):
WxDxH 180x310x85mm
Key Features:
- KERN Universal Port (KUP): permits the connection of an external KUP interface adapter
- KERN Communication Protocol (KCP) - Permits searching and remote control of the balance using external control devices or computers
- Robust aluminum diecast housing maintains the stability, protects the weighing technology elements and is robust enough to cope with everyday use
- Freely programmable weighing unit. e.g display direct in special units such as length of thread g/m, paper weight g/m2
Weighing Plate/Surface Dimensions & Materials:
| Weighing Plate | Dimensions Weighing Surface | Weighing Plate Material |
| A | ∅ 106mm | Stainless steel |
| B | ∅150mm | Stainless steel |
| C | WxD 160x200mm | Stainless steel |
See the KERN 572 In Action Below:
Other Variations:
| Model | Weight Capacity [MAX] (g) |
| 572-30 | 240 |
| 572-31 | 300 |
| 572-32 | 420 |
| 572-33 | 1600 |
| 572-35 | 2400 |
| 572-37 | 3000 |
| 572-39 | 4200 |
| 572-43 | 10000 |
| 572-45 | 12000 |
| 572-49 | 16000 |
| 572-55 | 20000 |
| 572-57 | 24000 |
