L Shaped Bonding Bracket 2 x10mm Stud & 1x4mm Banana

ESD Earth Bonding Brackets offer an affordable and not to mention easy method of grounding. This bracket is versatile, designed to fit under a table, workstation or a shelf and to be used with a range of ESD grounding cords.

As a safety precaution, this bracket comes in yellow as standard to ensure that it visually stands out and is clearly visible/identifiable as the grounding point.

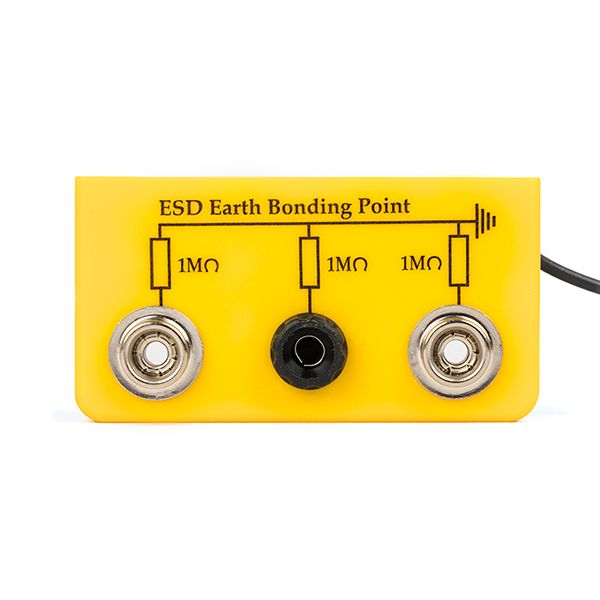

The L shaped bonding bracket includes 2x10mm male studs, 1x banana socket and 1 meg-ohm resistor on each individual stud or socket connection. Grounding cords can be connected to the Earth bracket via the female stud at one end of the cord to a male stud on an Earth bracket.

Key Features:

• Fitted with 2 x 10mm male studs
• 1 x banana socket
• 1 meg ohm resistor for each connection as standard
• Connection to Earth is made via the supplied 2 metres black wire with eyelet terminations and fitted with a ring terminal
• Dimensions: 70mm x 22mm x 40mm
• Printed black text states ‘ESD Earth Bonding Point. 1MΩ. 1MΩ. 1MΩ.’
• Earth bonding brackets are supplied with fixing screws and shake-proof washers
• High-build quality

Meets The Following ESD Standards & Regulations

• Supports IEC 61340-5-1 & ESD S20.20 ESD Handling
• RoHS and REACH compliant
• CE approved
