QFP Lead Straightener Tool
Universal QFP Lead Straightener Tool – AT-900000 TopLine
Universal QFP Lead Straightener Tool – AT-900000 TopLine
A Lead Straightener Tool, for many different chip packages, from LQFP, QFP & TQFP, from TopLine.
This straightening panel handles the full, wide array of lead pitches, from 0.4mm clear, all the way up to 1.0mm. There are 46 different QFP patterns allowing your to reshape the leads of your QFP components with ease.
Perfect for recovery of expensive QFP, TQFP and LQFP components.
This tool is an essential for PCB work, and perfect for quality control departments. You can verify pin count, chip body size and even the pitch of unknown QFP components.

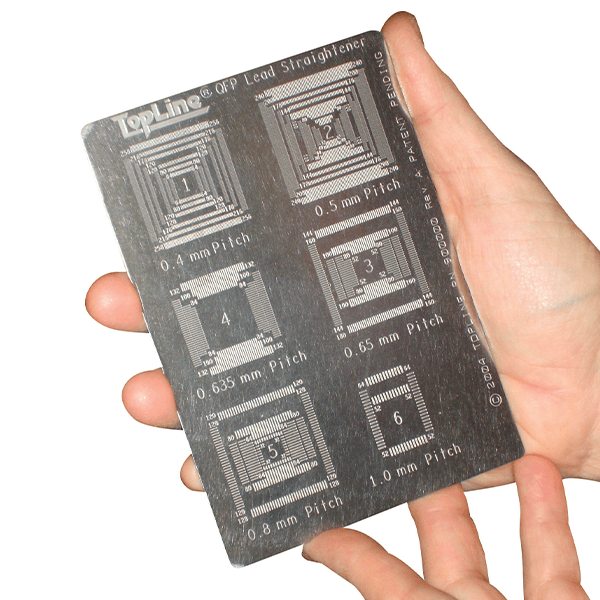

The construction of the template is a heavy-duty, conductive1.27mm thick stainless steel design. There are also 5mm deep etched recessed patterns which precisely match the leads of many QFP/LQFP/TQFP chips.
Design Patent D512,970
Utilising this tool is quick and simple, requiring just a steady hand and a standard hand tool such as a toothpick or a pair of tweezers. You can then easily adjust the leads to line up with the corresponding template slots on the tool.
Benefits Of The Lead Straightener Tool:
|
Highly Durable – Unlike most other plastic straightening devices, the AT900000 will not wear out, being constructed of a 1.27mm thick stainless steel plate. |
|
Versatile – The plate includes 46 different QFP patterns, making it ideal for many popular chip packages, including QFP, TQFP & LQFP. |
|
ESD Safe – This product is fine to be used within an EPA. It is recommended that it is used on a grounded bench mat, with the operator wearing a wrist strap. |
Why Would Your Need A Lead Straightener Tool?
Bent or out of shape leads on your QFP’s can present you with a number of problems. This can range from coplanarity issues, chip alignment problems and even unwanted solder bridging.
Instead of throwing away these components, this Lead Straightener Tool allows you to reshape, and even realign bent pins and leads on many of the popular QFP, TQFP and LQFP chip packages.
