Machine Diagnostic Solder Practice Kits
Machine Diagnostic Practice Solder Kits
Browse our range of Practice Machine Diagnostic Soldering Kits, with many different ranges available. Click to see the components that come included with the kits.
Range Of Machine Diagnostic Practice Kits & Components Included

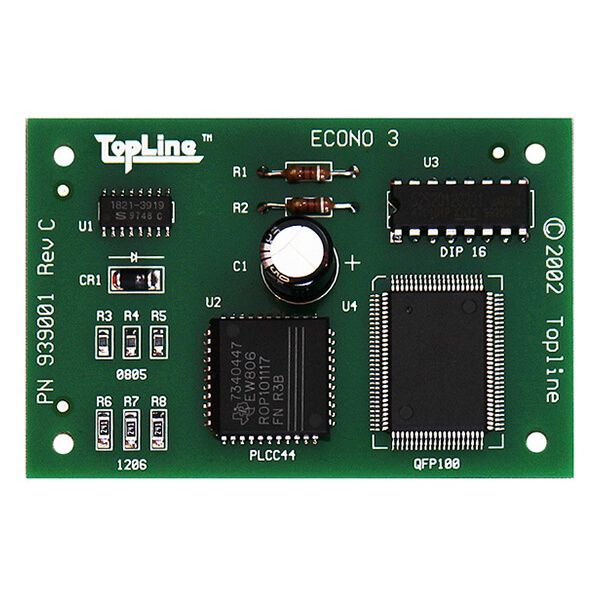

Board Description: Mixed technology kit for hand and machine assembly. Perfect for employment agencies for soldering certification of assemblers. Includes a variety of components such as QFP, PLCC, PDIP, axial lead, radial lead components, diodes and chip resistors.
Board Description: Practice kit that is used for soldering re-certification of assemblers. Offers an economical mixed technology kit with simple SMT and through hole components. These include PDIP, axial lead and radial lead components, diodes, transistors, chip resistors and chip capacitors.
Board Description: Chip shooter mounting kit including tiny 0201 and 0402 zero-ohm resistors for both placement and continuity testing. Simple ohm meters can be used to check continuity checking (good) or open circuit (fail) at test points for each row of components. Can be used for placement, soldering or epoxy dispenser testing.
Board Description: Chip shooter mounting kit including 01005 and 0201 zero ohm resistors for placement and continuity testing. Simple ohm meters can be used to check continuity checking (good) or open circuit (fail) at test points for each row of components. Can be used for placement, soldering or epoxy dispenser testing. Special W4P1 narrow tape, 4mm wide, with 1.0mm pitch available upon request.
Board Description: Chip shooter mounting kit includes 460 pads for 0402 and 360 pads for 0603 zero ohm resistors for placement and continuity testing. Simple ohm meters can be used to check continuity checking (good) or open circuit (fail) at test points for each row of components. Can be used for placement, soldering or epoxy dispenser testing.
Board Description: Chip shooter mounting kit including 300 pads for 0805 and 300 pads for 1206 resistors. Low cost way for you to measure the component per hour rating of your pick and place machine. Kit can be used for placement, soldering or epoxy dispenser testing. SMT carrier tape is 8mm wide, with components centred in 4mm pitch pockets.
Board Description: Designed to test the rotational accuracy of your system to ±0.5°. Each side of the board has pads for TSOP(I), SOIC and Resistors. Components are spaced on 22.5° angles.
What Is Through Hole Soldering
Through-hole soldering is the practice by which chip leads are fed through drilled holes on a PCB.
They are best used for high-reliability products, which require strong connections between layers. Through-hole technology is often used in aerospace or military products. These often require components to withstand extreme acceleration, impacts, high temperatures and more.
Through-hole components are also useful for prototyping and testing applications, especially where manual adjustment or replacement is required.
How To Order Through Hole Soldering Kits With Kaisertech:
Ordering through Kaisertech is simple. Once you know the through hole practice board that you require, and the volume, contact our team.
We can provide a competitive and accurate quote, along with a lead time to help make your purchasing decision easier. Call us on 023 8065 0065 or email us today at [email protected]for any further questions you have.
