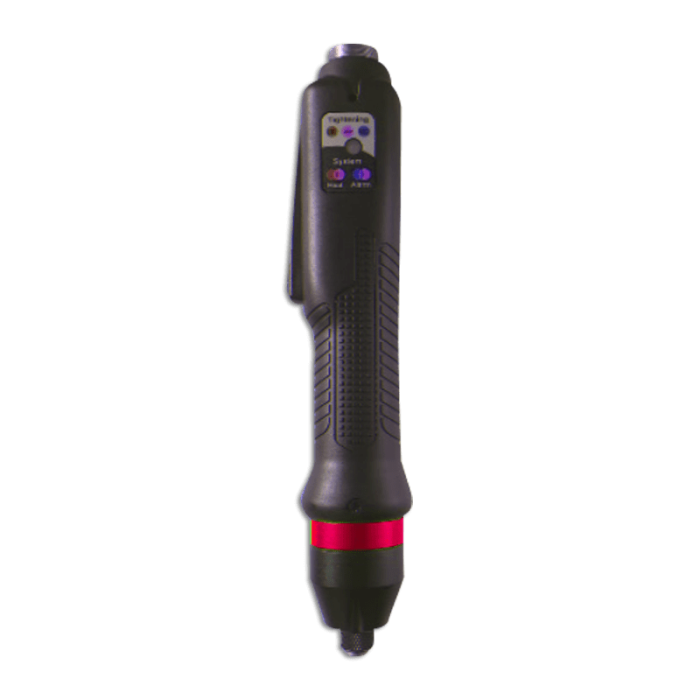

MD 2602-A Brushless Screwdriver 0.05-0.68 Nm, 150-2000rpm

MD 2602-A Brushless Screwdriver 0.05-0.68 Nm, 150-2000rpm

Zoom Out
Zoom In

MD 2602-A current control brushless electric screwdrivers

DESCRIPTION OF MD 2602-A CURRENT CONTROL BRUSHLESS ELECTRIC SCREWDRIVERS

Easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies of 10 steps each are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The tightening curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.

Lightweight and ergonomic, the MD2602-A straight screwdriver is designed for high-speed torque and angle tightening operations requiring precision (3%) and traceability of tightening torques (Cmk> 1.67 with +/- 10% tolerance).

BENEFITS OF MD 2602-A CURRENT CONTROL BRUSHLESS ELECTRIC SCREWDRIVERS

Quality of manufacture
  • 3% precision regardless of tightening elasticity
Robustness
  • Maxxon Brushless Motor made in Switzerland
Comfort
  • Ergonomic handle
  • Quiet motor
Industry 4.0
  • Traceability of tightening torques via Ethernet
  • Visualization of the curves
  • Anti-error system

General Specifications

TECHNICAL DETAILS

Type of screwdriver
Current control electric screwdriver
Min Torque 0.05 Nm
Max Torque 0.68 Nm
Min speed rotation 150 tr/min
Maxi speed rotation 2000 tr/min



Type of screwdriver Current control electric screwdriver
Min Torque 0.05 Nm
Max Torque 0.68 Nm
Min speed rotation 150 tr/min
Maxi speed rotation 2000 tr/min
Drive Size 1/4" F/Hex
Weight 0.435 kg
Shape Straight
Starting system Lever
Power Electric
Functionalities ESD,
Torque programmable,
Counting,
Network communication
Suitable controller MDC-26
Type of screwdriver Current control electric screwdriver
Min Torque 0.05 Nm
Max Torque 0.68 Nm
Min speed rotation 150 tr/min
Maxi speed rotation 2000 tr/min
Drive Size 1/4" F/Hex
Weight 0.435 kg
Shape Straight
Starting system Lever
Power Electric
Functionalities ESD,
Torque programmable,
Counting,
Network communication
Suitable controller MDC-26
