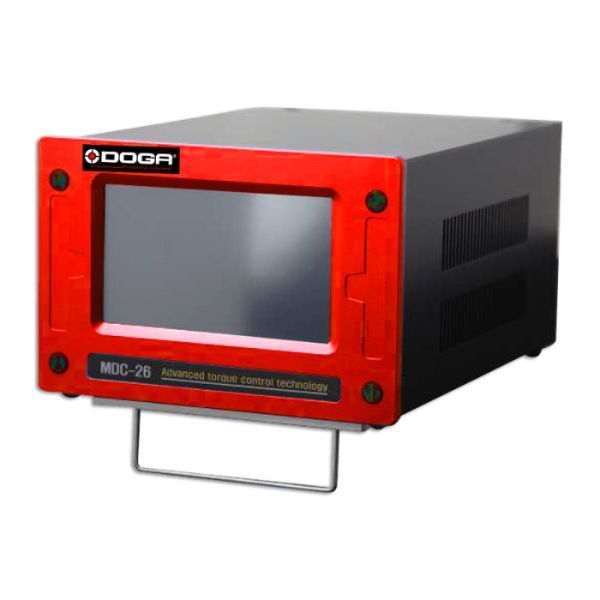

MDC-26s Controller

15 different tightening programs can be set in each MDC controller, tightening direction may be different for each preset.

All Parameters can be set independently in each program as:

Tightening strategy
-Torque control + angle/monitoring TC/AM
-Angle control + torque monitoring AC/TM

Torque
-Torque target, min torque, max torque, snug torque, seating point, torque compensation.

Angle
-Angle target, angle min, angle max, angle for free speed

Speed
-Auto speed, free speed, ramp up speed

Time
-Soft start, torque rising time

Features Of The MDC

• Self-learning mode for optimized tightening parameters
• Sequencing models with assignable tightening program, batch counting
• Logical I/O management

Advanced functions (can be added to each preset)

• Free reverse rotation - to engage screw
• Thread tapping - to overcome a thread torque higher than target torque
• Engaging torque detection - to detect a lock nut
• Angle after torque up - to go reverse for inserts fitting

Optional accessories:

• RS232 Cable DB9 Male/DB9 Female 3 meters SKU 1050598
• USB to RS232 converter SKU 1050597
• Lift-up stand kit SKU 1050592
