Mixed Technology Soldering Practice Boards - SMD Kits

Mixed Technology Soldering Kits - SMT Practice Boards



Browse our range of Practice Mixed Technology Soldering Kits, with many different ranges available. Click to see the components that come included with the kits.

Range Of Mixed Technology Practice Kits & Components Included

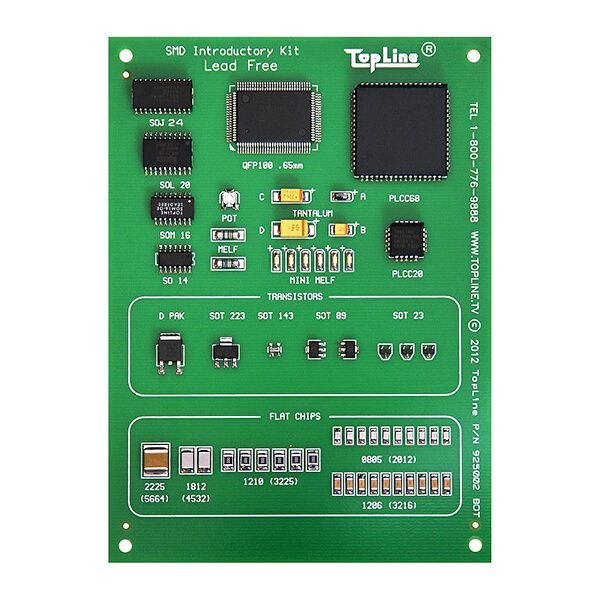

Board Description: Entry level kit with a range of easy to handle components. Excellent way to introduce someone to working with surface mount technology.

Board Description: A low cost mixed technology kit, designed for rework and solder practice. Perfect for beginners with a mixture of easy to handle components. Can be used for medium speed assembly.

Board Description: A combination of easy to handle SMD components and through hole components on a 100mil grid. Experiment with the mixed technology. Fine pitch QFP, SOIC, SOT, PLCC, SMT, DIP Components and more

Board Description: 2 Layer, mixed technology practice board. The top side has daisy chain components, with a mixture of through hole components. Included are test points for continuity checks after mounting, allowing you to verify the correct assembly with a simple ohm-meter.

Board Description: A soldering certification kit, ideal for agencies, providing a low cost way to quickly certify the competency of operators. These kits are economical and include mixed technology with fine pitch, popular components.

What Is Are Mixed Technology Practice Boards?

Mixed technology practice boards are used by mainstream surface mount manufacturers to test many capabilities of components. This includes component placement accuracy, surface insulation resistance, solder paste screening, solder joint integrity, wave soldering, component placement speed and more.

These kits include a mixture of SMD and other components. SMD stands for surface mount devices, meaning the components are soldered onto the surface of the PCB, unlike with through hole.

These boards provide a low cost practice method for rework and soldering applications. They include simple to handle components – perfect for beginner solderers!


How To Order Mixed Technology Soldering Kits With Kaisertech:

Ordering through Kaisertech is simple. Once you know the SMD practice board that you require, and the volume, contact our team.

We can provide a competitive and accurate quote, along with a lead time to help make your purchasing decision easier. Call us on 023 8065 0065 or email us today at [email protected]for any further questions you have.

More Information
General Specifications

Standard Board Specs

Board Size 5.5" x 4" (140 x 100mm)
Layers Double Sided
Board Material FR-4
Metallisation 1 Ounce Copper
Solder Mask LPI (Liquid Photo Imageable)
Silk Screen Yes
Tin-Lead Plating HASL (Hot Air Solder Levelling) SnPb
Pb-Free RoHS Tin, Gold (ENIG), Immersion Silver and OSP
Tooling Holes .125" (3.18mm) 4 Places
