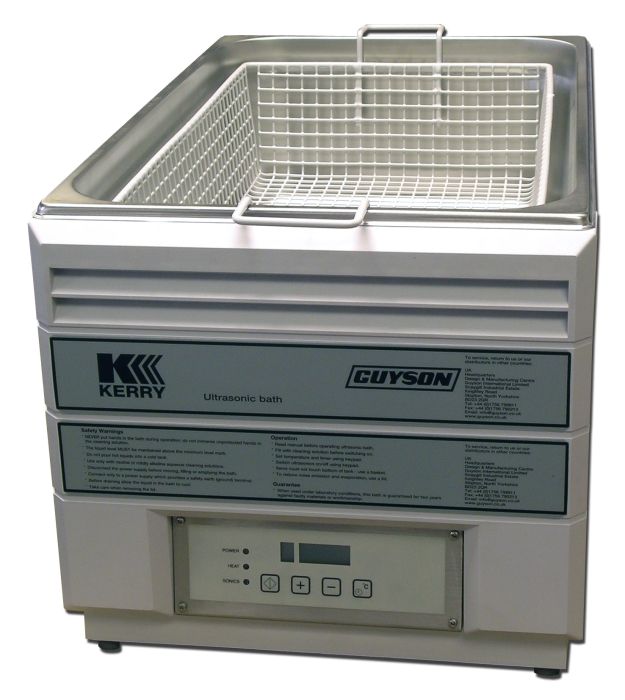

Guyson Kerry MKC22 Ultrasonic Bath Tank size 505x300x150 LxWxD

Guyson's range of 'Kerry' branded ultrasonic cleaners provide safe, fast and effective ultrasonic cleaning in a fraction of the time required by hand cleaning. Lightly soiled items such as jewellery may take only seconds; medium soil is normally removed in two minutes or so.

The larger microprocessor controlled MKC ultrasonic baths are available in capacities of 6, 14 and 22 litres (approx), allow the user to pre-set exact cleaning times (up to 99.9 mins) and temperatures (from 20 to 80°C), thus ensuring the same high level of cleanliness every time. All the KC & MKC tanks are made from stainless steel.

Typical cleaning applications for the Kerry range of range of ultrasonic cleaners

  • Maintenance cleaning
  • Precision cleaning on jewellery, clock and watch parts
  • Optical lenses and frames
  • Dental and surgical instruments
  • Tattoo guns
  • Printed circuit boards
  • Smaller manufactured parts
  • Laboratory cleaning in science labs, schools and colleges
  • Removal of supports on 3D printed prototypes
  • Removal of polishing compounds

Microprocessor controlled the MKC 22 (approx. 22 litres) ultrasonic cleaning bath allow the user to pre-set exact cleaning times and temperatures, ensuring the same high level of cleanliness every time.

The MKC 6, 14 and 22 provide:

  • Simple 4 button membrane keypad with LCD panel
  • Variable temperature control to maintain the bath contents between 20ºC and 80ºC in 1ºC
  • increments.
  • Timer control allowing continuous or timed operation (6 secs to 1hr 40 mins).

Key Features

  • Integral Guyson Pulsatron high efficiency generators with automatic tuning for powerful cleaning action.
  • Baths rated for continuous use if required.
  • Dual-purpose fail-safe, resettable thermal fuse - protects against over temperature operation / low liquid level.
  • CE compliant.
  • Stainless steel tank
  • 2 Years Warranty
More Information
General Specifications
Internal tank dimensions (L x W)Effective capacity (approx.)
505 x 300 mm 22 litres

PULSATRON KC & MKC BATHS - TECHNICAL DATA



KC2

KC3

MKC6

MKC14

MKC22

Overall - length (front to back)

162 mm

162 mm

205 mm

380 mm

555 mm

Overall - width (left to right)

176 mm

265 mm

325 mm

325 mm

325 mm

Overall - height

250 mm

250 mm

310 mm

310 mm

310 mm

Tank (Basket) - length (front to back)

135 (91) mm

135 (103) mm

150 (103) mm

325 (256) mm

505 (434) mm

Tank (Basket) - width (left to right)

149 (104) mm

238 (180) mm

300 (230) mm

300 (230) mm

300 (243) mm

Tank (Basket) - depth

100 (62) mm

100 (63) mm

150 (100) mm

150 (100) mm

150 (100) mm

Selectable temperature

-

-

 20ºC - 80ºC

Heater power

-

-

200W

600W

800W

Operating frequency

 38 kHz +/- 10%

Sonics timing (mins)

-

-

 0.1 - 99.9 or constant

Power (RMS)

75W

85W

110W

250W

330W

Drain facility

-

-

-

tap

tap

Weight (kg)

2.5

3.6

5.8

9.3

13.4

Mains input / frequency

 220/240V  50 Hz

ACCESSORIES

Plug and lead set

 Included in price of bath

Basket, stainless steel

       Optional

Lid, stainless steel with handle

       Optional

Beaker holder

-

-

 Optional

Beaker, 600ml Pyrex

-

-

 Optional



KEY FEATURES

  • Integral Guyson Pulsatron high efficiency generators with automatic tuning for powerful cleaning action.
  • Baths rated for continuous use if required.
  • Dual-purpose fail-safe, resettable thermal fuse - protects against over temperature operation / low liquid level.
  • CE compliant.



KC & MKC Baths are particularly suitable for applications within the following fields:

  • Medical
  • Optical
  • Dental
  • Industrial

Baths are supplied with a free starter pack of general purpose cleaning agent (UK only).
