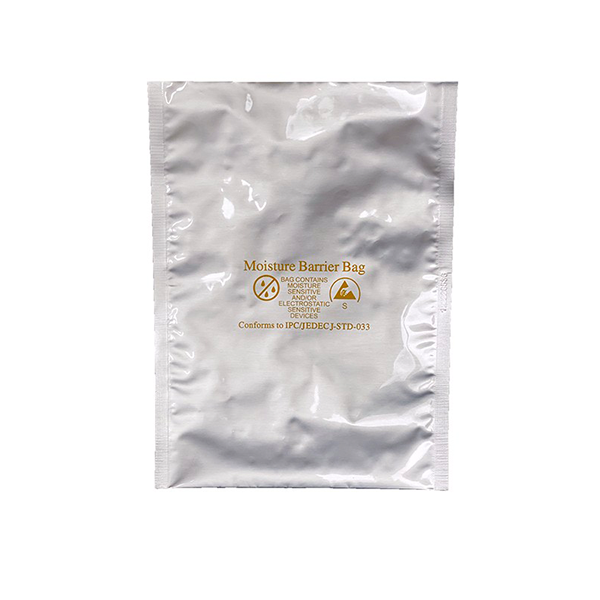

Moisture Barrier Bag | 255x305mm (10x12") per 100 - ESD

Moisture barrier bags are designed for the packaging of SMD’s, protecting them from moisture and static damage.

Dry devices are placed inside the Moisture Barrier Bag and the moisture laden air is evacuated.

Desiccant filled pouches scavenge the remaining moisture from the bags interior which is entrapped by the desiccant.

Humidity Indicator Cards report the effectiveness of the package upon device use.

Appearance:

Clean

No wrinkle, surface scratch, damage, pin hole, delimitation.

No separation on the encapsulation.

Product Information:
- Multilayer barrier bags offering superior protection against EMI, ESD, Anti Static and moisture absorption
- Heat Sealable
- Excellent vacuum retention
- Faraday cage effect protection
- Custom sizes available
- Resistant to puncture and wear
- Long time stocking in a damp atmosphere
- Surface resistance - Conforms to IEC 61340-5-1, EIA 583,EIA 541, EIA 625, IPC/JEDEC J-STD033, MIL-PRF-81705D, MIL-B-81705C TYPE 1 CLASS 1. 94/62/EC Directive related to packaging & packaging wastes RoHS compliant.

More Information
General Specifications

Electrical Properties:                                      Typical Values

Surface Resistivity/Resistance                    ANSI/ESD S11.11

Interior                                                                 >106 <1011 ohms/square            >106<1011 ohms/square

Exterior                                                                >106 <1011 ohms/square            >106<1011 ohms/square

Static Shielding                                                  <30 volts STM11.31

Static Shielding                                                  <50 nj STM11.31.2006

Static Decay                                                        <2 seconds                                          IEC61340-5-1-1998

Charge Retention                                             <100 volts                                           IEC61340-5-1-1998



Physical Properties

Puncture Strength                                           ≥10.2kg                                                FTMS101, MTH2065

Burst Strength                                                   146kg/cm2                                          ASTM D-638

Snap Power                                                        ≥3.7kg                                                   GB/T 1040-2006

(Vertical and Horizontal)                                                                                               ISO 527-2:1993

ASTM D639-03

Elongation Rate at break                               ≥3.3kg                                                   ASTM D-638

Tear Strength                                                     ≥0.6kg                                                   GB/T 16578-96

(Vertical and Horizontal)                                                                                               ASTM D1004-03

ASTM D1938-02

Peel Strength                                                     ≥0.5kg

Heat Seal Strength                                           ≥3.7kg                                                   ASTM D-1876-72

WVTR Water Vapour                                      ≤0.002                                                  (ANSI/EIA 583 ASTM F1249 (230c 90%RH)

class 1) g/100sq.in./24 hrs

Thickness                                                             100micron (4 mils) +/- 10%

OTR-Oxygen Transmission Rate                  ≤1.4cm3/(m2.24h.0.1MPa)          ASTM D3985

Shelf Life                                                              ≥3 years

 Standards: Meets the requirements of the joint IPC/JEDEC J-STD-033, ANSI/ESD S20.20, STM11.31 2006, EIA541, MIL-B-81705C Type 1, IEC 61340-5-1, FTMS101, MTH2065, GB/T 1040, ISO 527-2: , ASTM D639-03, ASTM D-638, GB/T 16578-96, ASTM D1938-02, ASTM D-1876-72.
