JBC NASE-2A Nano Rework Station

This product has been discontinued
Save £116.00

£784.00 (Exc.VAT)

Was: £900.00

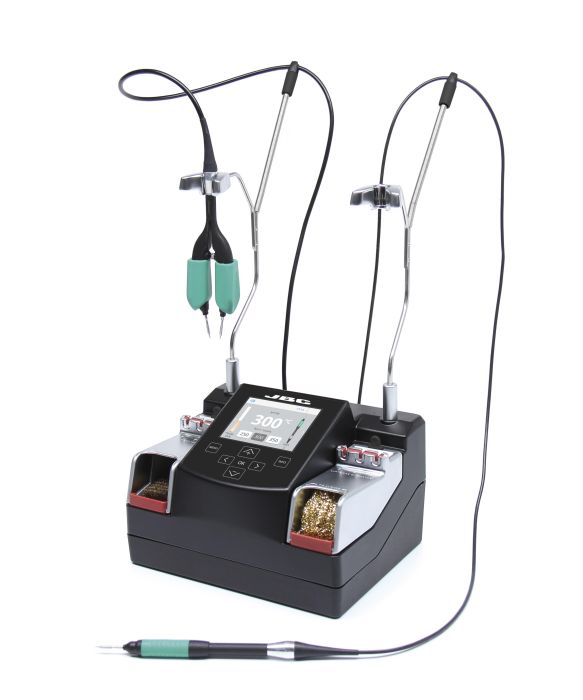

JBC NASE Nano Rework station

Zoom Out
Zoom In

The best solution for repairing very small-sized components requiring the highest precisionsuch as chips 0402, 0201, 01005, etc.

It works simultaneously with the NT105 Nano Handpiece and the NP105 Nano Tweezers.

The short distance from the tip to the handle offers maximum control even when using a microscope.

It works with the JBC exclusive heating systemand the intelligent sleep & hibernation modes.

It features all the Excellence range benefits andan easy-to-use menu which helps you monitor the work in real time: graphics, partial counters, tool port monitoring, etc.
View FileJBC Excellence Range    Size: (3.28 MB)
View FileJBC NASE Manual    Size: (1.44 MB)
View FileNano Tools Brochure    Size: (1.67 MB)

General Specifications


Weight 1.8 kg (4.0 lb)
Dimensions 170 x 90 x 135 mm
Voltage 120V / 230V / 100V
Input Fuse 0.5A / 0.2A / 0.5A
Output Peak Power 14W per tool
Temperature selection 90-450 ºC (190-840 ºF)
Idle temp. stability (still air) ±3 ºC (±5.5 ºF)
Tip to ground resistance <2 ohms
Ambient operating temp. 10-40 ºC (50-104 ºF)
Communication connectors USB-A / USB-B / Pedal
Robot connector RJ12 for RS-232 protocol
ESD safe

Package weight 2.25 kg (4.96 lb)
Package dimensions 276 x 276 x136 mm
Great for reworking 0201 components
Value
Quality
Price
“I've had the JBC nano rework station for 2 weeks now and i must say it has been a life saver! I have saved so much time using this system, the tweezers are fantastic for removing 0201's.

I was worried at first because of the tip size and that the heat transfer may not be that great but I've been proven wrong. The tips get to temperature you set in literally seconds.

I will be buying more in the near future!”
(Posted on 24/03/2015)
