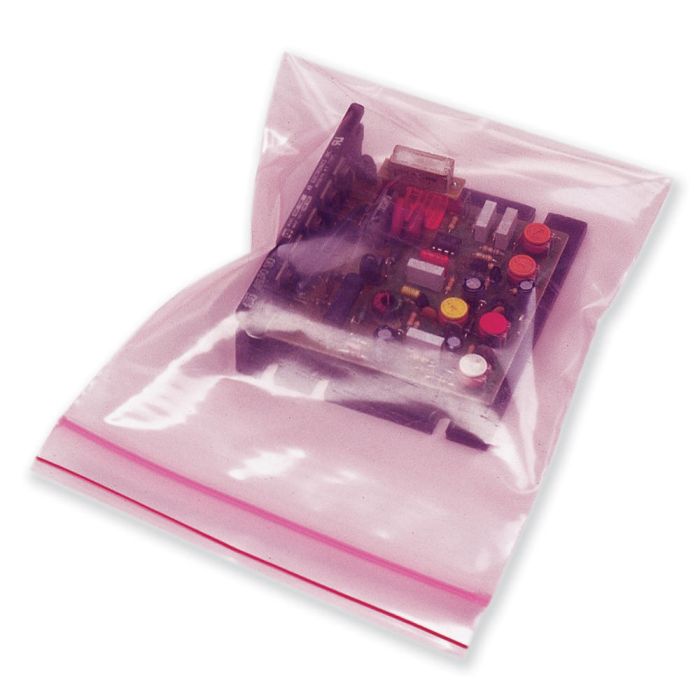

Pink ESD anti-static zipper bags 255 x 305mm (10 x 12") per 100

Product Information:
- Treated to inhibit generation of harmful static charges
- See-through pink ESD Anti Static
- High quality amine free polyethylene
- Heat sealable
- Zip lock
- 400 gauge
- Surface resistance 1011 Ohm
- Conforms to IEC 61340-5-1
- Customs sizes available

Pink anti-static bags are ideal for use in transporting non-static sensitive devices, (e.g. nuts, bolts etc.) into an Electro-static Protected Area. (E.P.A.) Available in open top and loc-top resealable.

Electrostatic damage to electronic devices can occur at any point from manufacture to field service. Damage results from handling the devices in uncontrolled surroundings or when poor ESD control practices are used.

“METALISED SHIELDING” BAGS (silver in colour) If bags, holding STATIC SENSITIVE COMOPONENTS, are to be handled OUTSIDE OF AN “EPA”, they should be in METALISED SHIELDING BAGS, a FARADAY CAGE! Metalised Shielding bags can be an effective FARADAY CAGE, subject to the quality of material and physical condition.

DO NOT CREASE the bag, as this can breakdown the intergrity of the metalised shield! You should not use any bags damaged with TEARS AND / OR PUNTURES, as these can DESTROY THE FUNCTION OF THE FARADAY CAGE! Metalised Shielding bags CAN DETERIORATE with use, MONITORING them for effectiveness is VERY IMPORTANT!

ANTISTATIC BAGS (Pink in colour) These are the only acceptable “plastic” bags in an EPA! Antistatic bags offer NO effective protection against a contact ESD! They should only be used for NON STATIC SENSITIVE components, e.g. nuts, bolts, paper etc. ORDINARY PLASTIC BAGS can generate and hold static charges in excess of 10,000v! Antistatic bags deteriorate with time and wear, MONITORING them is VERY IMPORTANT.

More Information
General Specifications

Standards - Meets the requirements of ESD STM11.31-2006, EIA541, MIL81705, MIL-STD3010

4046, IEC61340-5-1-1998



Specifications:

Electrical Properties:                                      Typical Values

Surface Resistivity/Resistance                    STM11.31-2006/ ANSI/ESD STM11.11

Interior                                                                 >106 <1011 ohms/square >106 <1011 ohms/square

Exterior                                                                >106 <1011 ohms/square >106 <1011 ohms/square

Static Decay                                                        < 2 seconds IEC61340-5-1-1998

Charge Retention                                             <100 volts IEC61340-5-1-1998



Physical Properties:

Seam Strength                                                   Pass                       MIL-PRF-81705



Heat Sealing Conditions:

Temperature                                                     110c – 150c

Time                                                                      0.5 – 3.5 seconds

Pressure                                                              20῀60PSI

Thickness                                                            0.06±mm

Outgassing                                                          Pass                       ASTM E595

Non-Corrosive                                                   Pass                       FTMS 101 MTH 3005

Shelf Life:                                                            3 years

 ANTI STATIC COATING
