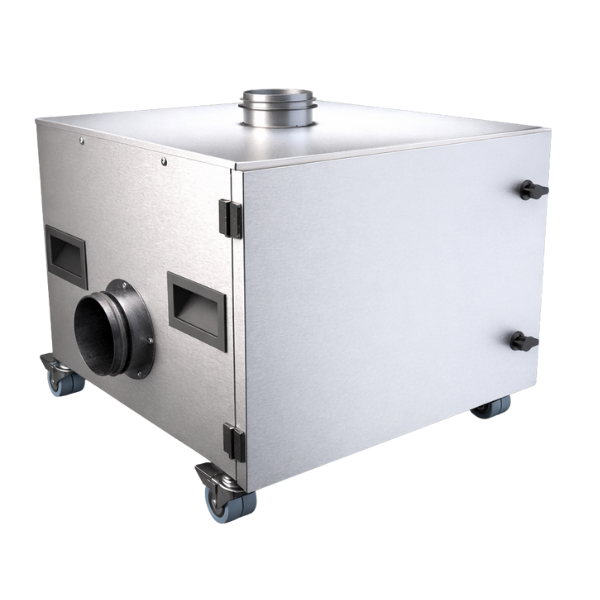

The Purex stainless steel Inline Carbon Box is a compact unit designed for clean, efficient performance.

Compatible with a range of main filters, it offers flexibility to suit different setups.

The Carbon Layer helps remove unwanted gases and impurities, delivering cleaner, purer air while operating quietly. Easy to install and simple to reposition

Key Features

• Quite operation with minimal airflow restriction.
• Designed to work alongside existing Purex extraction systems.
• Low maintenance design with long filter life.
• HEPA/Chemical Combination Filters - remove airborne particles and harmful gases.
• Chemical Filters - effective absorption of gases, vapours, and odours.
• Additional carbon filtration stage for enhanced gas and odour removal.
• Low maintenance design with long filter life.
•

Machine Supplied With

• 1x main filter
• 1x Connection kit

How Does It Work?

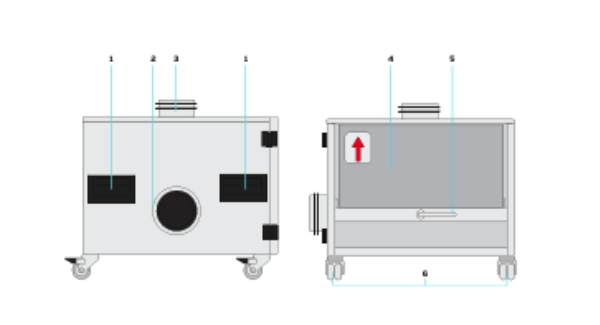

Key:

• 1) Handles
• 2) Air inlet - 100mm safe seal
• 3) Air outlet - 100mm safe seal
• 4) Main Filter
• 5) Release bar
• 6) Castors

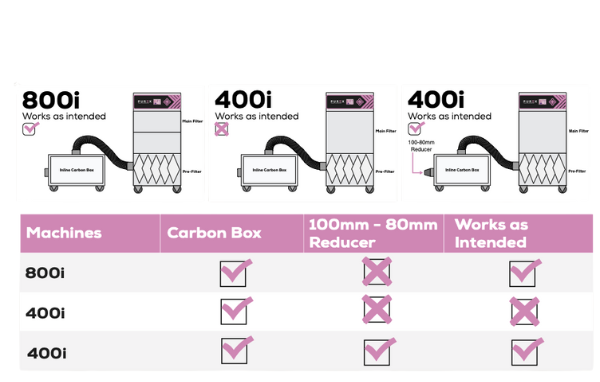

For the inline cascade cabinet to work appropriately alongside a 400i it will need to use the included 100-80mm reducer fitting

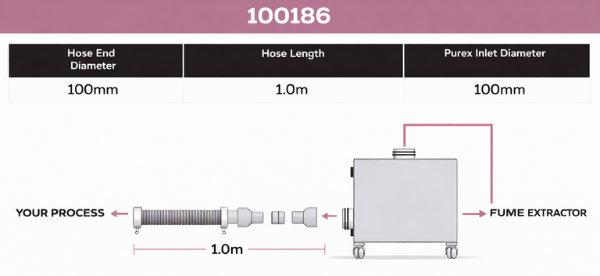

Supplied Connection Kit (100186)

• 1 x 100mm Hose End Diameter
• 1 x 1.0m Hose Length
• 1 x 100mm Purex Inlet Diameter
