Sahara Forced Ventilation ovens for PCB and electronic board backing according to Jedec 033 and IPC 1602 standards.

Forced ventilation ovens are available in 2 models: with temperature control only (Sahara) and also with humidity control (Sahara Dry).

They are designed to perform the following works:

1. PCB Baking (IPC  1602) - PCBs should be baked at 105–125°C for 4-6 hours in a forced ventilation oven. All ovens feature a programmable timer with start-up and countdown functions to ensure proper baking time and prevent oxidation.
2. SMD Baking (J-STD-033) - SMD components can be baked at 40°C, 90°C, or 125°C. For 40°C and 90°C (<5% RH required), Sahara Dry ovens with humidity control are recommended. Baking time depends on MSL, package type, and thickness - up to 79 day (40°C), 10 days (90°C), or 96 hours (125°C). Proper baking restores the components’ original floor life.
3. Thermal Cycling - Sahara ovens can run programmable thermal cycles (PC-editable)for testing or controlled heating/cooling with adjustable temperature gradients.

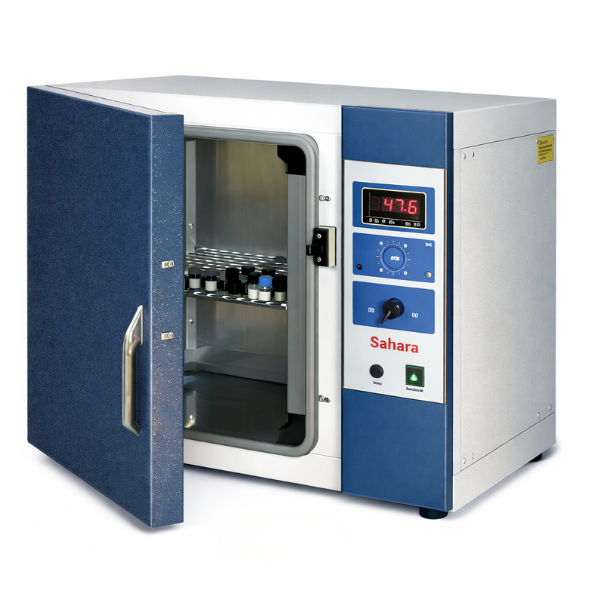

Sahara Ovens

• Compliance with: IPC - 1602 Baking PCB
• Temperature Control
• Safety thermostat
• Ventilation opening

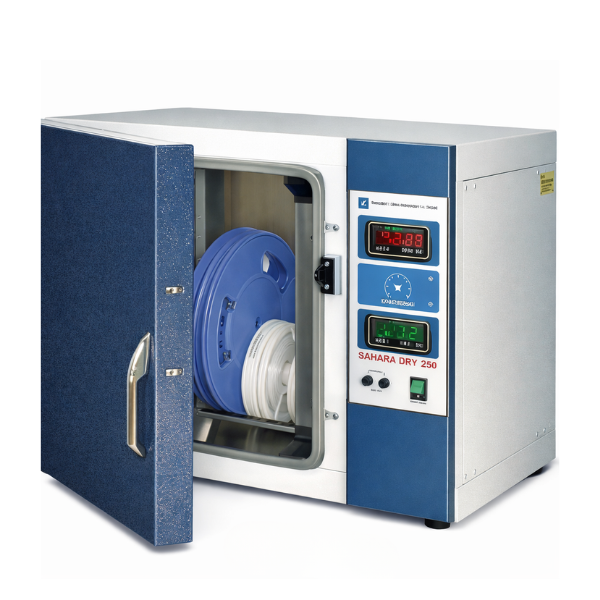

Sahara Dry Ovens

• Compliance with: J-STD -033 Baking SMD IPC-1602 Baking PCB
• Ventilation opening
• Safety Thermostat
• Humidity Control
• Dehumidification at <5% RH is reached by blowing dry air

Sahara Ovens are ideal for:

1. PCB (Printed Circuit Boards) reconditioning before assembly
2. MSD (Moisture Sensitive Devices) reconditioning for Floor Life restoration
3. PBA (Printed Board Assembled) reconditioning before reworking or repair
4. PCB and PBA preheating before soldering or repair (to reduce thermal data)
