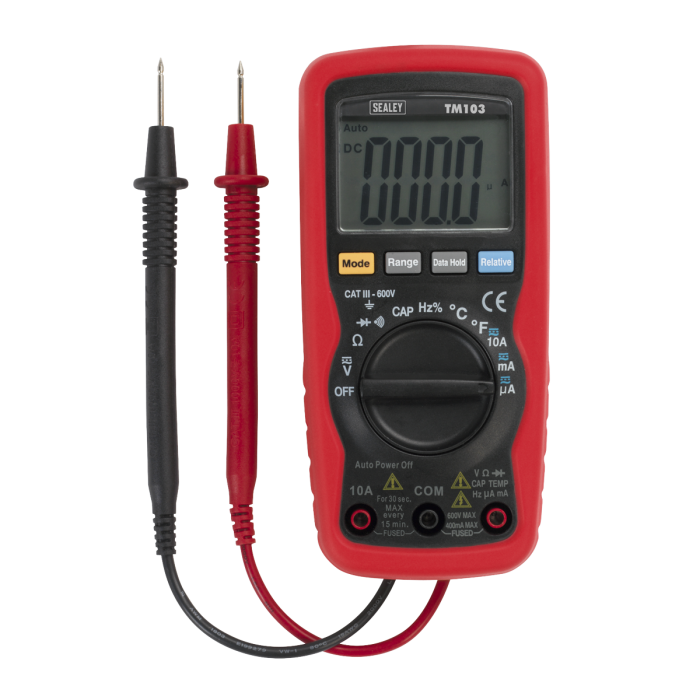

High precision auto-ranging multimeter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features temperature measurement capability, max/data hold, and auto power off function. Double moulded housing with soft grip case and large display for ease of use. Practical probe and lead storage and integral upright stand for use on the workbench. Supplied in zipped pouch with carry strap.

Measures:

FrequencyDuty Cycle
AC and DC Voltage
AC and DC Current
Resistance
Diode Test
Continuity Buzzer
Temperature

Specification

More Information

General Specifications

Model No	TM103
Nett Weight:	255g
AC Voltage (Accuracy):	400mV (±1.5%), 4V (±1.2%), 40V, 400V (±1.5%), 600V (±2%)
DC Voltage (Accuracy):	0-400mV (±0.5%), 4V, 40V, 400V (±1.2%), 600V (±1.5%)
AC Current (Accuracy):	400µA (±1.5%), 4000µA, 40mA, 400mA (±1.8%), 10A (±3%)
DC Current (Accuracy):	400µa (±1%), 4000µa, 40mA, 400mA (±1.5%), 10A (±2.5%)
Resistance (Accuracy):	0-400Ω (±1.2%), 4kΩ (±1%), 40kΩ, 400kΩ, 4MΩ (±1.2%), 40MΩ (±2%)
Capacitance (Accuracy):	4nF, 40nF (±5%), 400nF, 4µF, 40µF (±3%), 200µF (±5%)
Temperature (Accuracy):	-20ºC to 760ºC (±3%), -4 to 1400ºF (±5%)
Frequency (Accuracy):	9.999Hz to 9.999MHz
Duty Cycle:	0.1%-99.9% (±1.2%)
Continuity Audible:	Yes
Diode Test:	Yes
Transistor Test:	No
Hi-Impact Rubber Case:	Yes
Digits x Height:	4 x 14mm
Low Battery Indicator:	Yes
Battery (Supplied):	1 x 9V
Information:	Data-Hold & Auto Power Off
Size (L x W x D):	150 x 70 x 48mm
Weight:	255g
Conformity:	EN 61010-1
